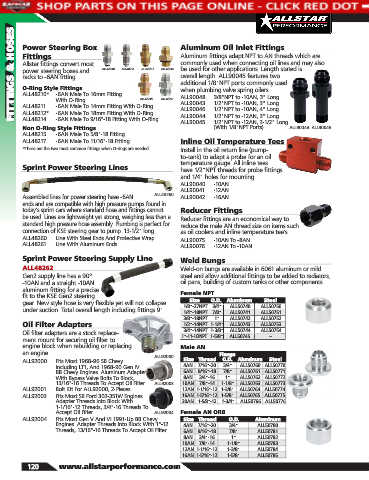

Page 122 - 2018 Allstar Performance Parts and Equipment Catalog

FITTINGS & HOSES Power Steering Box ALL48210 ALL48211 ALL48212 ALL48214 Aluminum Oil Inlet Fittings

Fittings
Aluminum fittings adapt NPT to AN threads which are
commonly used when connecting oil lines and may also
Allstar fittings convert most
be used for other applications. Length stated is
power steering boxes and
overall length. ALL90045 features two
racks to -6AN fitting.
additional 1/8"NPT ports commonly used
O-Ring Style Fittings
when plumbing valve spring oilers.
ALL48210* ... -6AN Male To 16mm Fitting
ALL90048 .... 3/8"NPT to -10AN, 3" Long
ALL48217
ALL48215
With O-Ring
ALL90043 .... 1/2"NPT to -10AN, 3" Long
ALL48211 ..... -6AN Male To 14mm Fitting With O-Ring
ALL90046 .... 1/2"NPT to -10AN, 4" Long
ALL48212* ... -6AN Male To 18mm Fitting With O-Ring
ALL90044 .... 1/2"NPT to -12AN, 3" Long
ALL48214 ..... -6AN Male To 9/16"-18 Fitting With O-Ring
ALL90045 .... 1/2"NPT to -12AN, 3-1/2" Long
Non O-Ring Style Fittings (With 1/8"NPT Ports) ALL90044 ALL90045
ALL48215 ..... -6AN Male To 5/8"-18 Fitting
ALL48217 ..... -6AN Male To 11/16"-18 Fitting Inline Oil Temperature Tees
*These are the two most common fittings when O-rings are needed. Install in the oil return line (pump-
to-tank) to adapt a probe for an oil
temperature gauge. All inline tees
Sprint Power Steering Lines have 1/2"NPT threads for probe fittings
and 1/4" holes for mounting.
ALL90040 .... -10AN
ALL90041 ..... -12AN
Assembled lines for power steering have -6AN ALL48260 ALL90042..... -16AN
ends and are compatible with high pressure pumps found in
today’s sprint cars where standard hose and fittings cannot Reducer Fittings
be used. Lines are lightweight yet strong, weighing less than a Reducer fittings are an economical way to
standard high pressure hose assembly. Plumbing is perfect for reduce the male AN thread size on items such
connection of KSE steering gear to pump. 13-1/2" long. as oil coolers and inline temperature tee’s.
ALL48260 ..... Line With Steel Ends And Protective Wrap ALL90075 ..... -10AN To -8AN
ALL48261 ..... Line With Aluminum Ends ALL90076 ..... -12AN To -10AN
Sprint Power Steering Supply Line Weld Bungs
ALL48262 Weld-on bungs are available in 6061 aluminum or mild
Gen2 supply line has a 90° steel and allow additional fittings to be added to radiators,
-10AN and a straight -10AN oil pans, building of custom tanks or other components.
aluminum fitting for a precise
fit to the KSE Gen2 steering Female NPT
gear. New style hose is very flexible yet will not collapse Size O.D. Aluminum Steel
under suction. Total overall length including fittings 9". 1/8"-27NPT 3/4" ALL50740 ALL50750
1/4"-18NPT 7/8" ALL50741 ALL50751
3/8"-18NPT 1" ALL50742 ALL50752
Oil Filter Adapters 1/2"-14NPT 1-1/4" ALL50743 ALL50753
Oil filter adapters are a stock replace- 3/4"-14NPT 1-3/8" ALL50744 ALL50754
ment mount for securing oil filter to 1"-11-1/2NPT 1-5/8" ALL50745 –
engine block when rebuilding or replacing Male AN
an engine. Flange
ALL92000
ALL92000 ..... Fits Most 1968-96 SB Chevy Size Thread O.D. Aluminum Steel
Including LT1, And 1968-90 Gen IV 4AN 7/16"-20 3/4" ALL50760 ALL50770
BB Chevy Engines. Aluminum Adapter 6AN 9/16"-18 7/8" ALL50761 ALL50771
With Bypass Valve Bolts To Block, 8AN 3/4"-16 1" ALL50762 ALL50772
13/16"-16 Threads To Accept Oil Filter ALL92003 10AN 7/8"-14 1-1/8" ALL50763 ALL50773
ALL92001 ..... Bolt Kit For ALL92000, 2-Pieces 12AN 1-1/16"-12 1-3/8" ALL50764 ALL50774
ALL92003 ..... Fits Most SB Ford 302-351W Engines. 16AN 1-5/16"-12 1-5/8" ALL50765 ALL50775
Adapter Threads Into Block With 20AN 1-5/8"-12 1-3/4" ALL50766 ALL50776
1-1/16"-12 Threads, 3/4"-16 Threads To
Accept Oil Filter ALL92004 Female AN ORB
ALL92004 ..... Fits Most Gen V And VI 1991-Up BB Chevy Size Thread O.D. Aluminum
Engines. Adapter Threads Into Block With 1"-12 4AN 7/16"-20 3/4" ALL50780
Threads, 13/16"-16 Threads To Accept Oil Filter 6AN 9/16"-18 7/8" ALL50781
8AN 3/4"-16 1" ALL50782
10AN 7/8"-14 1-1/8" ALL50783
12AN 1-1/16"-12 1-3/8" ALL50784
16AN 1-5/16"-12 1-5/8" ALL50785
