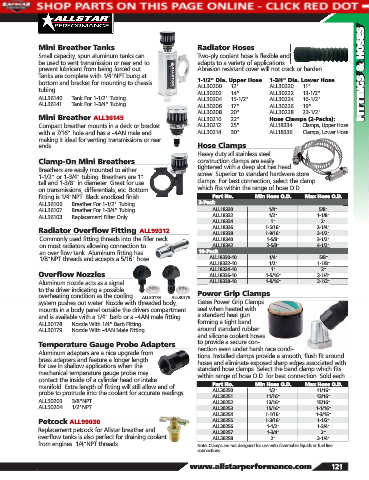

Page 123 - 2018 Allstar Performance Parts and Equipment Catalog

Mini Breather Tanks Radiator Hoses
Small capacity, spun aluminum tanks can Two-ply coolant hose is flexible and
be used to vent transmission or rear end to adapts to a variety of applications.
prevent lubricant from being forced out. Abrasion resistant cover will not crack or harden. FITTINGS & HOSES
Tanks are complete with 1/4"NPT bung at
bottom and bracket for mounting to chassis 1-1/2" Dia. Upper Hose 1-3/4" Dia. Lower Hose
tubing. ALL30200 ..... 12" ALL30220 .....11"
ALL30202 ..... 14" ALL30222 .....13-1/2"
ALL36140 ..... Tank For 1-1/2" Tubing ALL30204 ..... 15-1/2" ALL30224 .....16-1/2"
ALL36141 ..... Tank For 1-3/4" Tubing ALL30206 ..... 17" ALL30226 .....19"
ALL30208 ..... 20" ALL30228 .....23-1/2"
Mini Breather ALL36145 ALL30210 ..... 22" Hose Clamps (2-Packs):
Compact breather mounts in a deck or bracket ALL30212 ..... 25" ALL18334 ..... Clamps, Upper Hose
with a 7/16" hole and has a -4AN male end ALL30214 ..... 30" ALL18336 ..... Clamps, Lower Hose
making it ideal for venting transmissions or rear
ends. Hose Clamps
Heavy duty all stainless steel
Clamp-On Mini Breathers construction clamps are easily
Breathers are easily mounted to either tightened with a deep slot hex head
1-1/2" or 1-3/4" tubing. Breathers are 1" screw. Superior to standard hardware store
tall and 1-3/8" in diameter. Great for use clamps. For best connection, select the clamp
on transmissions, differentials, etc. Bottom which fits within the range of hose O.D.
fitting is 1/4"NPT. Black anodized finish. Part No. Min Hose O.D. Max Hose O.D.
ALL36106 ..... Breather For 1-1/2" Tubing 2-Pack
ALL36107 ..... Breather For 1-3/4" Tubing ALL18330 1/4" 5/8"
ALL36103 ..... Replacement Filter Only ALL18332 1/2" 1-1/8"
ALL18334 1" 2"
ALL18336 1-5/16" 2-1/4"
Radiator Overflow Fitting ALL99312 ALL18338 1-9/16" 2-1/2"
Commonly used fitting threads into the filler neck ALL18340 1-5/8" 3-1/2"
on most radiators allowing connection to ALL18342 2-5/8" 4-1/2"
an over flow tank. Aluminum fitting has 10-Pack
1/8"NPT threads and accepts a 5/16" hose. ALL18330-10 1/4" 5/8"
ALL18332-10 1/2" 1-1/8"
ALL18334-10 1" 2"
Overflow Nozzles ALL18336-10 1-5/16" 2-1/4"
Aluminum nozzle acts as a signal ALL18338-10 1-9/16" 2-1/2"
to the driver indicating a possible
overheating condition as the cooling ALL30178 ALL30179 Power Grip Clamps
system pushes out water. Nozzle with threaded body, Gates Power Grip Clamps
mounts in a body panel outside the drivers compartment seal when heated with
and is available with a 1/4" barb or a -4AN male fitting. a standard heat gun
ALL30178 ..... Nozzle With 1/4" Barb Fitting forming a tight band
ALL30179 ..... Nozzle With -4AN Male Fitting around standard rubber
and silicone coolant hoses
Temperature Gauge Probe Adapters to provide a secure con-
Aluminum adapters are a nice upgrade from nection even under harsh race condi-
tions. Installed clamps provide a smooth, flush fit around
brass adapters and feature a longer length hoses and eliminate exposed sharp edges associated with
for use in shallow applications when the standard hose clamps. Select the band clamp which fits
mechanical temperature gauge probe may within range of hose O.D. for best connection. Sold each.
contact the inside of a cylinder head or intake
manifold. Extra length of fitting will still allow end of Part No. Min Hose O.D. Max Hose O.D.
probe to protrude into the coolant for accurate readings. ALL30250 1/2" 11/16"
ALL30251 11/16" 13/16"
ALL50203 ..... 3/8"NPT ALL30252 13/16" 15/16"
ALL50204 ..... 1/2"NPT ALL30253 15/16" 1-1/16"
ALL30254 1-1/16" 1-3/16"
Petcock ALL99030 ALL30255 1-3/16" 1-1/2"
ALL30256 1-1/2" 1-3/4"
Replacement petcock for Allstar breather and ALL30257 1-3/4" 2"
overflow tanks is also perfect for draining coolant ALL30258 2" 2-1/4"
from engines. 1/4"NPT threads. Note: Clamps are not designed for use with flammable liquids or fuel line
connections.
www.allstarperformance.com 121
