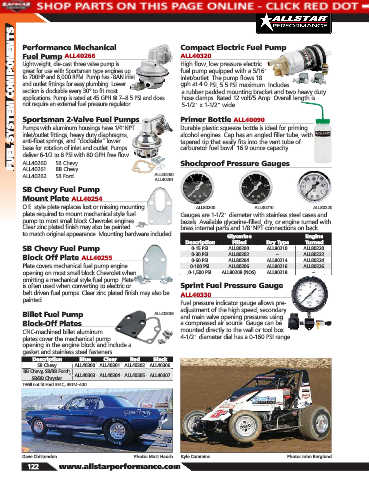

Page 124 - 2018 Allstar Performance Parts and Equipment Catalog

FUEL SYSTEM COMPONENTS

Performance Mechanical Compact Electric Fuel Pump
Fuel Pump ALL40266 ALL40320
Lightweight, die-cast three valve pump is High flow, low pressure electric
great for use with Sportsman type engines up fuel pump equipped with a 5/16"
to 700HP and 8,000 RPM. Pump has -8AN inlet inlet/outlet. The pump flows 18
and outlet fittings for easy plumbing. Lower gph at 4.0 PSI, 5.5 PSI maximum. Includes
section is clockable every 30° to fit most a rubber padded mounting bracket and two heavy duty
applications. Pump is rated at 45 GPH @ 7–8.5 PSI and does hose clamps. Rated 12 volt/5 Amp. Overall length is
not require an external fuel pressure regulator. 5-1/2" x 1-1/2" wide.

Sportsman 2-Valve Fuel Pumps Primer Bottle ALL40090
Pumps with aluminum housings have 1/4"NPT Durable plastic squeeze bottle is ideal for priming
inlet/outlet fittings, heavy duty diaphragms, alcohol engines. Cap has an angled filler tube, with
anti-float springs, and “clockable” lower tapered tip that easily fits into the vent tube of
base for rotation of inlet and outlet. Pumps carburetor fuel bowl. 16.9 ounce capacity.
deliver 6-1/2 to 8 PSI with 80 GPH free flow.
ALL40260 ..... SB Chevy Shockproof Pressure Gauges
ALL40261 ..... BB Chevy
ALL40262 ..... SB Ford ALL40260
ALL40261
SB Chevy Fuel Pump
Mount Plate ALL40254
O.E. style plate replaces lost or missing mounting ALL80200 ALL80210 ALL80220
plate required to mount mechanical style fuel Gauges are 1-1/2" diameter with stainless steel cases and
pump to most small block Chevrolet engines. bezels. Available glycerine-filled, dry, or engine turned with
Clear zinc plated finish may also be painted brass internal parts and 1/8"NPT connections on back.
to match original appearance. Mounting hardware included.
Glycerine Engine
Description Filled Dry Type Turned
SB Chevy Fuel Pump 0-15 PSI ALL80200 ALL80210 ALL80220
0-30 PSI ALL80202 – ALL80222
Block Off Plate ALL40255 0-60 PSI ALL80204 ALL80214 ALL80224
Plate covers mechanical fuel pump engine 0-100 PSI ALL80206 ALL80216 ALL80226
opening on most small block Chevrolet when 0-1,500 PSI ALL80208 (NOS) ALL80218 –
omitting a mechanical style fuel pump. Plate
is often used when converting to electric or Sprint Fuel Pressure Gauge
belt driven fuel pumps. Clear zinc plated finish may also be ALL40330
painted.
Fuel pressure indicator gauge allows pre-
adjustment of the high speed, secondary
Billet Fuel Pump ALL40306 and main valve opening pressures using
Block-Off Plates a compressed air source. Gauge can be
CNC-machined billet aluminum mounted directly to the wall or tool box.
plates cover the mechanical pump 4-1/2" diameter dial has a 0-160 PSI range.
opening in the engine block and include a
gasket and stainless steel fasteners.
Description Blue Clear Red Black
SB Chevy ALL40300 ALL40301 ALL40302 ALL40306
BB Chevy, SB/BB Ford ,
†
SB/BB Chrysler ALL40303 ALL40304 ALL40305 ALL40307
†Will not fit Ford 351C, 351M-400.

Dave Chittenden Photo: Matt Hauch Kyle Cummins Photo: John Berglund
