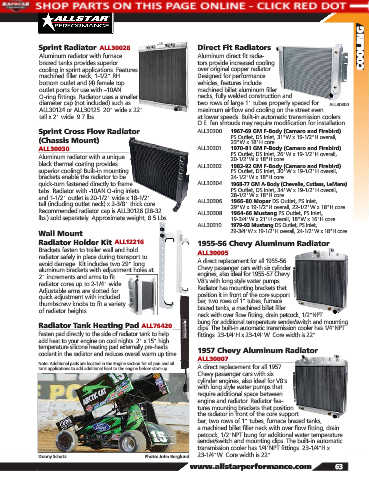

Page 65 - 2018 Allstar Performance Parts and Equipment Catalog

COOLING

Direct Fit Radiators
Sprint Radiator ALL30028
Aluminum radiator with furnace Aluminum direct fit radia-
brazed tanks provides superior tors provide increased cooling
cooling in sprint applications. Features over original copper radiator.
machined filler neck, 1-1/2" RH Designed for performance
bottom outlet and (4) female top vehicles, features include
outlet ports for use with –10AN machined billet aluminum filler
O-ring fittings. Radiator uses a smaller necks, fully welded construction and
diameter cap (not included) such as two rows of large 1" tubes properly spaced for ALL30300
ALL30124 or ALL30125. 20" wide x 22" maximum airflow and cooling on the street even
tall x 2" wide. 9.7 lbs. at lower speeds. Built-in automatic transmission coolers.
O.E. fan shrouds may require modification for installation.
Sprint Cross Flow Radiator ALL30300 ..... 1967-69 GM F-Body (Camaro and Firebird)
(Chassis Mount) PS Outlet, DS Inlet, 31"W x 19-1/2"H overall,
23"W x 18"H core
ALL30030 ALL30301 ..... 1970-81 GM F-Body (Camaro and Firebird)
Aluminum radiator with a unique PS Outlet, DS Inlet, 26"W x 19-1/2"H overall,
20-1/2"W x 18"H core
black thermal coating provides ALL30302 ..... 1982-92 GM F-Body (Camaro and Firebird)
superior cooling! Built-in mounting PS Outlet, DS Inlet, 30"W x 19-1/2"H overall,
brackets enable the radiator to be 24-1/2"W x 18"H core
quick-turn fastened directly to frame ALL30304 ..... 1968-77 GM A-Body (Chevelle, Cutlass, LeMans)
tabs. Radiator with -10AN O-ring inlets PS Outlet, DS Inlet, 34"W x 19-1/2"H overall,
and 1-1/2" outlet is 20-1/2" wide x 18-1/2" 28-1/2"W x 18"H core
tall (including outlet neck) x 2-3/8" thick core. ALL30306 ..... 1966-80 Mopar DS Outlet, PS Inlet,
29"W x 19-1/2"H overall, 22-1/2"W x 18"H core
Recommended radiator cap is ALL30126 (28-32 ALL30308 ..... 1964-66 Mustang PS Outlet, PS Inlet,
lbs.) sold separately. Approximate weight, 8.5 Lbs. 19-3/4"W x 21"H overall, 18"W x 16"H core
ALL30310 ..... 1979-93 Mustang DS Outlet, PS Inlet,
Wall Mount 29-3/4"W x 19-1/2"H overall, 24-1/2"W x 18"H core
Radiator Holder Kit ALL12216 1955-56 Chevy Aluminum Radiator
Brackets fasten to trailer wall and hold ALL30005
radiator safely in place during transport to
avoid damage. Kit includes two 29" long A direct replacement for all 1955-56
aluminum brackets with adjustment holes at Chevy passenger cars with six cylinder
2" increments and arms to fit engines, also ideal for 1955-57 Chevy
radiator cores up to 2-1/4" wide. V8’s with long style water pumps.
Adjustable arms are slotted for Radiator has mounting brackets that
quick adjustment with included position it in front of the core support
thumbscrew knobs to fit a variety bar, two rows of 1" tubes, furnace
of radiator heights. brazed tanks, a machined billet filler
neck with over flow fitting, drain petcock, 1/2"NPT
bung for additional temperature sender/switch and mounting
Radiator Tank Heating Pad ALL76420 clips. The built-in automatic transmission cooler has 1/4"NPT
Fasten pad directly to the side of radiator tank to help fittings. 23-1/4"H x 23-1/4"W. Core width is 22".
add heat to your engine on cool nights. 2" x 15" high
temperature silicone heating pad externally pre-heats 1957 Chevy Aluminum Radiator
coolant in the radiator and reduces overall warm up time.
ALL30007
Note: Additional pads are located in the Engine section for oil pan and oil
tank applications to add additional heat to the engine before start-up. A direct replacement for all 1957
Chevy passenger cars with six
cylinder engines, also ideal for V8’s
with long style water pumps that
require additional space between
engine and radiator. Radiator fea-
tures mounting brackets that position
the radiator in front of the core support
bar, two rows of 1" tubes, furnace brazed tanks,
a machined billet filler neck with over flow fitting, drain
petcock, 1/2"NPT bung for additional water temperature
sender/switch and mounting clips. The built-in automatic
transmission cooler has 1/4"NPT fittings. 23-1/4"H x
Donny Schatz Photo: John Berglund 23-1/4"W. Core width is 22".
