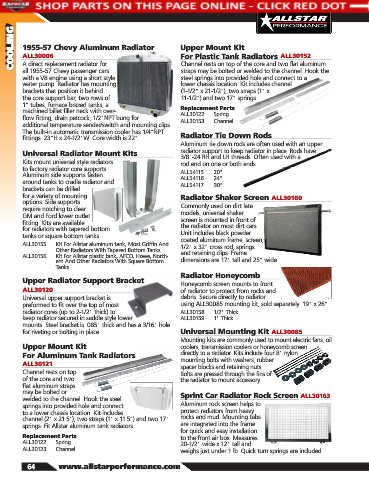

Page 66 - 2018 Allstar Performance Parts and Equipment Catalog

COOLING 1955-57 Chevy Aluminum Radiator Upper Mount Kit

For Plastic Tank Radiators ALL30152
ALL30006
A direct replacement radiator for
straps may be bolted or welded to the channel. Hook the
all 1955-57 Chevy passenger cars
steel springs into provided hole and connect to a
with a V8 engine using a short style Channel rests on top of the core and two flat aluminum
water pump. Radiator has mounting lower chassis location. Kit includes channel
brackets that position it behind (1-1/2" x 21-1/2"), two straps (1" x
the core support bar, two rows of 11-1/2") and two 17" springs.
1" tubes, furnace brazed tanks, a
machined billet filler neck with over- Replacement Parts
flow fitting, drain petcock, 1/2"NPT bung for ALL30122 ..... Spring
additional temperature sender/switch and mounting clips. ALL30153 ..... Channel
The built-in automatic transmission cooler has 1/4"NPT Radiator Tie Down Rods
fittings. 23"H x 24-1/2"W. Core width is 22".
Aluminum tie down rods are often used with an upper
radiator support to keep radiator in place. Rods have
Universal Radiator Mount Kits 3/8"-24 RH and LH threads. Often used with a
Kits mount universal style radiators rod end on one or both ends.
to factory radiator core supports. ALL54115 ..... 20"
Aluminum side supports fasten ALL54116 ..... 24"
around tanks to cradle radiator and ALL54117 ..... 30"
brackets can be drilled
for a variety of mounting Radiator Shaker Screen ALL30160
options. Side supports
require notching to clear Commonly used on dirt late
GM and Ford lower outlet models, universal shaker
fitting. Kits are available screen is mounted in front of
for radiators with tapered bottom the radiator on most dirt cars.
tanks or square bottom tanks. Unit includes black powder
coated aluminum frame, screen,
ALL30155 ..... Kit For Allstar aluminum tank, Most Griffin And 1/2" x 32" cross rod, springs
Other Radiators With Tapered Bottom Tanks
ALL30156 ..... Kit For Allstar plastic tank, AFCO, Howe, North- and retaining clips. Frame
ern And Other Radiators With Square Bottom dimensions are 17" tall and 25" wide.
Tanks
Radiator Honeycomb
Upper Radiator Support Bracket Honeycomb screen mounts to front
ALL30120 of radiator to protect from rocks and
Universal upper support bracket is debris. Secure directly to radiator
preformed to fit over the top of most using ALL30085 mounting kit, sold separately. 19" x 26".
radiator cores (up to 2-1/2" thick) to ALL30158 ..... 1/2" Thick
keep radiator secured in saddle style lower ALL30159 ..... 1" Thick
mounts. Steel bracket is .085" thick and has a 3/16" hole
for riveting or bolting in place. Universal Mounting Kit ALL30085
Mounting kits are commonly used to mount electric fans, oil
Upper Mount Kit coolers, transmission coolers or honeycomb screen
For Aluminum Tank Radiators directly to a radiator. Kits include four 8" nylon
mounting bolts with washers, rubber
ALL30121 spacer blocks and retaining nuts.
Channel rests on top Bolts are pressed through the fins of
of the core and two the radiator to mount accessory.
flat aluminum straps
may be bolted or
welded to the channel. Hook the steel Sprint Car Radiator Rock Screen ALL30163
springs into provided hole and connect Aluminum rock screen helps to
to a lower chassis location. Kit includes protect radiators from heavy
channel (2" x 21.5"), two straps (1" x 11.5") and two 17" rocks and mud. Mounting tabs
springs. Fit Allstar aluminum tank radiators. are integrated into the frame
for quick and easy installation
Replacement Parts to the front air box. Measures
ALL30122 ..... Spring 20-1/2" wide x 12" tall and
ALL30123 ..... Channel weighs just under 1 lb. Quick turn springs are included.

64 www.allstarperformance.com
