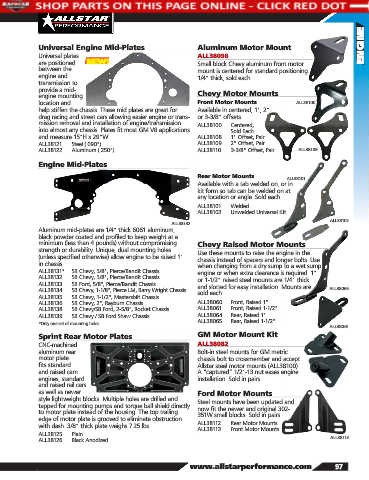

Page 99 - 2018 Allstar Performance Parts and Equipment Catalog

ENGINE

Universal Engine Mid-Plates Aluminum Motor Mount
Universal plates ALL38098
are positioned NEW! Small block Chevy aluminum front motor
between the mount is centered for standard positioning.
engine and 1/4" thick, sold each.
transmission to
provide a mid-
engine mounting Chevy Motor Mounts
location and Front Motor Mounts ALL38100
help stiffen the chassis. These mid plates are great for Available in centered, 1", 2"
drag racing and street cars allowing easier engine or trans- or 3-3/8" offsets.
mission removal and installation of engine/transmission ALL38100 ..... Centered,
into almost any chassis. Plates fit most GM V8 applications Sold Each
and measure 15"H x 29"W. ALL38108 ..... 1" Offset, Pair
ALL38121 ..... Steel (.090") ALL38109 ..... 2" Offset, Pair
ALL38122 ..... Aluminum (.250") ALL38110 .... 3-3/8" Offset, Pair ALL38109

Engine Mid-Plates
Rear Motor Mounts ALL38101
Available with a tab welded on, or in
kit form so tab can be welded on at
any location or angle. Sold each.
ALL38101 ..... Welded
ALL38102 ..... Unwelded Universal Kit
ALL38102
ALL38132
Aluminum mid-plates are 1/4" thick 6061 aluminum,
black powder coated and profiled to keep weight at a
minimum (less than 4 pounds) without compromising Chevy Raised Motor Mounts
strength or durability. Unique, dual mounting holes
(unless specified otherwise) allow engine to be raised 1" Use these mounts to raise the engine in the
in chassis. chassis instead of spacers and longer bolts. Use
when changing from a dry sump to a wet sump
ALL38131* ... SB Chevy, 5/8", Pierce/Bandit Chassis engine or when extra clearance is required. 1"
ALL38132 ..... SB Chevy, 5/8", Pierce/Bandit Chassis or 1-1/2" raised steel mounts are 1/4" thick
ALL38133 ..... SB Ford, 5/8", Pierce/Bandit Chassis and slotted for easy installation. Mounts are
ALL38134 ..... SB Chevy, 1-1/8", Pierce LM, Barry Wright Chassis sold each. ALL38065
ALL38135 ..... SB Chevy, 1-1/2", Mastersbilt Chassis
ALL38136 ..... SB Chevy, 2", Rayburn Chassis ALL38060 .... Front, Raised 1"
ALL38138 ..... SB Chevy/SB Ford, 2-5/8", Rocket Chassis ALL38061 ..... Front, Raised 1-1/2"
ALL38139 ..... SB Chevy / SB Ford Shaw Chassis ALL38064 .... Rear, Raised 1"
ALL38065 ..... Rear, Raised 1-1/2"
*Only one set of mounting holes
ALL38061
Sprint Rear Motor Plates GM Motor Mount Kit
CNC-machined ALL38082
aluminum rear Bolt-in steel mounts for GM metric
motor plate chassis bolt to crossmember and accept
fits standard Allstar steel motor mounts (ALL38100).
and raised cam A “captured” 1/2"-13 nut eases engine
engines, standard installation. Sold in pairs.
and raised rail cars
as well as newer Ford Motor Mounts
style lightweight blocks. Multiple holes are drilled and Steel mounts have been updated and
tapped for mounting pumps and torque ball shield directly now fit the newer and original 302-
to motor plate instead of the housing. The top trailing 351W small blocks. Sold in pairs.
edge of motor plate is grooved to eliminate obstruction
with dash. 3/8" thick plate weighs 7.25 lbs. ALL38112 ..... Rear Motor Mounts
ALL38113 ..... Front Motor Mounts
ALL38125 ..... Plain
ALL38126 ..... Black Anodized ALL38113

www.allstarperformance.com 97
