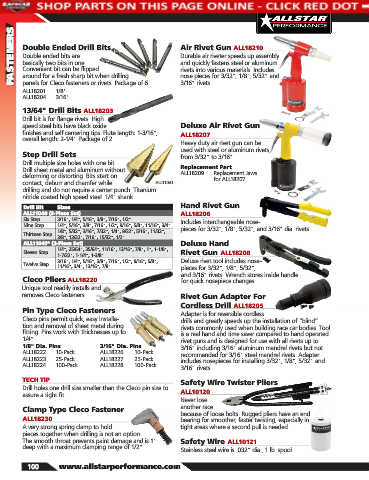

Page 102 - 2018 Allstar Performance Parts and Equipment Catalog

FASTENERS Double Ended Drill Bits Air Rivet Gun ALL18210

Durable air riveter speeds up assembly
Double ended bits are
and quickly fastens steel or aluminum
basically two bits in one.
rivets into various materials. Includes
Convenient bit can be flipped
around for a fresh sharp bit when drilling
panels for Cleco fasteners or rivets. Package of 6.
3/16" rivets.
ALL18201 ..... 1/8" nose pieces for 3/32", 1/8", 5/32" and
ALL18204 ..... 3/16"
13/64" Drill Bits ALL18203
Drill bit is for flange rivets. High
speed steel bits have black oxide Deluxe Air Rivet Gun
finishes and self centering tips. Flute length: 1-3/16", ALL18207
overall length: 2-1/4". Package of 2.
Heavy duty air rivet gun can be
used with steel or aluminum rivets
Step Drill Sets from 3/32" to 3/16".
Drill multiple size holes with one bit.
Drill sheet metal and aluminum without Replacement Part
deforming or distorting. Bits start on ALL18209 ..... Replacement Jaws
for ALL18207
contact, deburr and chamfer while ALL11041
drilling and do not require a center punch. Titanium
nitride coated high speed steel. 1/4" shank.
Drill Bit Sizes Hand Rivet Gun
ALL11040 (3-Piece Set) ALL18206
Six Step 3/16", 1/4", 5/16", 3/8", 7/16", 1/2" Includes interchangeable nose-
Nine Step 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4" pieces for 3/32", 1/8", 5/32", and 3/16" dia. rivets.
1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32",
Thirteen Step
3/8", 13/32", 7/16", 15/32", 1/2"
ALL11041* (2-Piece Set) Deluxe Hand
1/4", 25/64", 35/64", 11/16", 13/16", 7/8", 1", 1-1/8",
Eleven Step Rivet Gun ALL18208
1-7/32", 1-1/4", 1-3/8"
3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", Deluxe rivet tool includes nose-
Twelve Step
11/16", 3/4", 13/16", 7/8" pieces for 3/32", 1/8", 5/32",
and 3/16" rivets. Wrench stores inside handle
Cleco Pliers ALL18220 for quick nosepiece changes.
Unique tool readily installs and
removes Cleco fasteners. Rivet Gun Adapter For
Cordless Drill ALL18205
Pin Type Cleco Fasteners Adapter is for reversible cordless
Cleco pins permit quick, easy installa- drills and greatly speeds up the installation of “blind”
tion and removal of sheet metal during rivets commonly used when building race car bodies. Tool
fitting. Pins work with thicknesses up to is a real hand and time saver compared to hand operated
1/4". rivet guns and is designed for use with all rivets up to
1/8" Dia. Pins 3/16" Dia. Pins 3/16" including 3/16" aluminum mandrel rivets but not
ALL18222 ..... 10-Pack ALL18226 ...... 10-Pack recommended for 3/16" steel mandrel rivets. Adapter
ALL18223 ..... 25-Pack ALL18227 ...... 25-Pack includes nosepieces for installing 3/32", 1/8", 5/32" and
ALL18224 ..... 100-Pack ALL18228 ...... 100-Pack 3/16" rivets.

TECH TIP Safety Wire Twister Pliers
Drill holes one drill size smaller than the Cleco pin size to ALL10120
assure a tight fit.
Never lose
Clamp Type Cleco Fastener another race
because of loose bolts. Rugged pliers have an end
ALL18230 bearing for smoother, faster twisting, especially in
A very strong spring clamp to hold tight areas where a second pull is needed.
pieces together when drilling is not an option.
The smooth throat prevents paint damage and is 1" Safety Wire ALL10121
deep with a maximum clamping range of 1/2".
Stainless steel wire is .032" dia., 1 lb. spool.

100 www.allstarperformance.com
