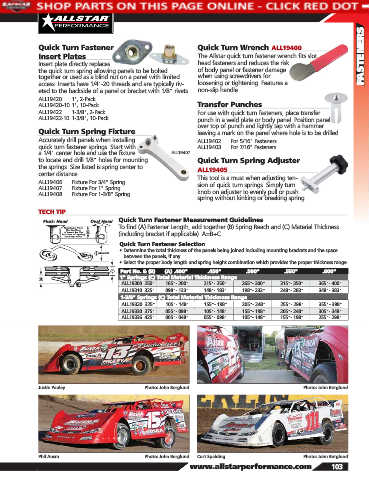

Page 105 - 2018 Allstar Performance Parts and Equipment Catalog

Quick Turn Fastener Quick Turn Wrench ALL19400
Insert Plates The Allstar quick turn fastener wrench fits slot FASTENERS
Insert plate directly replaces head fasteners and reduces the risk
the quick turn spring allowing panels to be bolted of body panel or fastener damage
together or used as a blind nut on a panel with limited when using screwdrivers for
access. Inserts have 1/4"-20 threads and are typically riv- loosening or tightening. Features a
eted to the backside of a panel or bracket with 1/8" rivets. non-slip handle.
ALL19420 ..... 1", 2-Pack
ALL19420-10 1", 10-Pack Transfer Punches
ALL19422 ..... 1-3/8", 2-Pack For use with quick turn fasteners, place transfer
ALL19422-10 1-3/8", 10-Pack punch in a weld plate or body panel. Position panel
over top of punch and lightly tap with a hammer
Quick Turn Spring Fixture leaving a mark on the panel where hole is to be drilled.
Accurately drill panels when installing ALL19402 ..... For 5/16" Fasteners
quick turn fastener springs. Start with ALL19403 ..... For 7/16" Fasteners
a 1/4" center hole and use the fixture ALL19407
to locate and drill 1/8" holes for mounting Quick Turn Spring Adjuster
the springs. Size listed is spring center to ALL19405
center distance. This tool is a must when adjusting ten-
ALL19406 ..... Fixture For 3/4" Spring sion of quick turn springs. Simply turn
ALL19407 ..... Fixture For 1" Spring
ALL19408 ..... Fixture For 1-3/8" Spring knob on adjuster to evenly pull or push
spring without kinking or breaking spring.

TECH TIP
Quick Turn Fastener Measurement Guidelines
To find (A) Fastener Length, add together (B) Spring Reach and (C) Material Thickness
(including bracket if applicable). A=B+C
Quick Turn Fastener Selection
• Determine the total thickness of the panels being joined including mounting brackets and the space
between the panels, if any.
• Select the proper body length and spring height combination which provides the proper thickness range.
Part No. & (B) (A) .400" .450" .500" .550" .600"
1" Springs (C) Total Material Thickness Range
ALL19300 .250" .165"-.200" .215"-.250" .265"-.300" .315"-.350" .365"-.400"
ALL19310 .325" .098"-.133" .148"-.183" .198"-.233" .248"-.283" .348"-.383"
1-3/8" Springs (C) Total Material Thickness Range
ALL19320 .325" .105"-.148" .155"-.198" .205"-.248" .255"-.298" .355"-.398"
ALL19330 .375" .055"-.098" .105"-.148" .155"-.198" .205"-.248" .305"-.348"
ALL19336 .425" .005"-.048" .055"-.098" .105"-.148" .155"-.198" .255"-.298"
