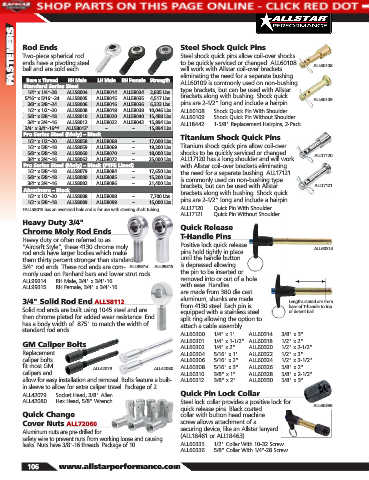

Page 108 - 2018 Allstar Performance Parts and Equipment Catalog

FASTENERS Rod Ends Steel Shock Quick Pins ALL60108

Steel shock quick pins allow coil-over shocks
Two-piece spherical rod
to be quickly serviced or changed. ALL60108
ends have a pivoting steel
will work with Allstar coil-over brackets
ball and are sold each.
Bore x Thread
RH Male
ALL60109 is commonly used on non-bushing
Standard Series Steel LH Male RH Female Strength eliminating the need for a separate bushing.
type brackets, but can be used with Allstar
1/4" x 1/4"-28 ALL58004 ALL58014 ALL58034 2,835 Lbs
5/16" x 5/16"-24 ALL58005 ALL58015 ALL58035 4,517 Lbs brackets along with bushing. Shock quick ALL60109
3/8" x 3/8"-24 ALL58006 ALL58016 ALL58036 6,323 Lbs pins are 2-1/2" long and include a hairpin.
1/2" x 1/2"-20 ALL58008 ALL58018 ALL58038 10,046 Lbs ALL60108 ..... Shock Quick Pin With Shoulder
5/8" x 5/8"-18 ALL58010 ALL58020 ALL58040 15,488 Lbs ALL60109 ..... Shock Quick Pin Without Shoulder
3/4" x 3/4"-16 ALL58012 ALL58022 ALL58042 15,894 Lbs ALL18442 ..... 1-5/8" Replacement Hairpins, 2-Pack
3/4" x 3/4"-16** ALL58013 † – – 15,894 Lbs
Pro Series Steel (Moly) – Black Titanium Shock Quick Pins
1/2" x 1/2"-20 ALL58058 ALL58068 – 17,000 Lbs
1/2" x 5/8"-18 ALL58059 ALL58069 – 19,300 Lbs Titanium shock quick pins allow coil-over
5/8" x 5/8"-18 ALL58060 ALL58070 – 18,000 Lbs shocks to be quickly serviced or changed. ALL17120
3/4" x 3/4"-16 ALL58062 ALL58072 – 25,000 Lbs ALL17120 has a long shoulder and will work
Pro Series Steel (Moly) – Black (PTFE Lined) with Allstar coil-over brackets eliminating
1/2" x 5/8"-18 ALL58079 ALL58084 – 17,650 Lbs the need for a separate bushing. ALL17121
5/8" x 5/8"-18 ALL58080 ALL58085 – 15,200 Lbs is commonly used on non-bushing type
3/4" x 3/4"-16 ALL58082 ALL58086 – 21,400 Lbs brackets, but can be used with Allstar ALL17121
Aluminum – Black brackets along with bushing. Shock quick
1/2" x 1/2"-20 ALL58088 ALL58098 – 7,700 Lbs
1/2" x 5/8"-18 ALL58089 ALL58099 – 15,000 Lbs pins are 2-1/2" long and include a hairpin.
†ALL58013 has an oversized hole and is for use with steering shaft tubing. ALL17120 ...... Quick Pin With Shoulder
ALL17121 ...... Quick Pin Without Shoulder
Heavy Duty 3/4"
Chrome Moly Rod Ends Quick Release
Heavy duty or often referred to as T-Handle Pins
“Aircraft Style”, these 4130 chrome moly Positive lock quick release ALL60314
rod ends have larger bodies which make pins hold tightly in place
them thirty percent stronger than standard until the handle button
3/4" rod ends. These rod ends are com- ALL99314 ALL99315 is depressed allowing
monly used on Panhard bars and lower strut rods. the pin to be inserted or
ALL99314 ..... RH Male, 3/4" x 3/4"-16 removed into or out of a hole
ALL99315 ..... RH Female, 3/4" x 3/4"-16 with ease. Handles
are made from 380 die cast
aluminum, shanks are made
3/4" Solid Rod End ALL58112 from 4130 steel. Each pin is Lengths stated are from
Solid rod ends are built using 1045 steel and are equipped with a stainless steel base of T-handle to top
of detent ball.
then chrome plated for added wear resistance. End split ring allowing the option to
has a body width of .875" to match the width of attach a cable assembly.
standard rod ends.
ALL60300 ..... 1/4" x 1" ALL60314 ..... 3/8" x 3"
ALL60301 ..... 1/4" x 1-1/2" ALL60318 ..... 1/2" x 2"
GM Caliper Bolts ALL60302 ..... 1/4" x 2" ALL60320 ..... 1/2" x 2-1/2"
Replacement ALL60304 ..... 5/16" x 1" ALL60322..... 1/2" x 3"
caliper bolts ALL60306 ..... 5/16" x 2" ALL60324 ..... 1/2" x 3-1/2"
fit most GM ALL42079 ALL42080 ALL60308 ..... 5/16" x 3" ALL60326 ..... 5/8" x 2"
calipers and ALL60310 ..... 3/8" x 1" ALL60328 ..... 5/8" x 2-1/2"
allow for easy installation and removal. Bolts feature a built- ALL60312 ..... 3/8" x 2" ALL60330 .... 5/8" x 3"
in sleeve to allow for extra caliper travel. Package of 2.
ALL42079 ..... Socket Head, 3/8" Allen Quick Pin Lock Collar
ALL42080 ..... Hex Head, 5/8" Wrench Steel lock collar provides a positive lock for
quick release pins. Black coated ALL60335
Quick Change collar with button head machine
Cover Nuts ALL72060 screw allows attachment of a
Aluminum nuts are pre-drilled for securing device, like an Allstar lanyard
safety wire to prevent nuts from working loose and causing (ALL18461 or ALL18463).
leaks. Nuts have 3/8"-16 threads. Package of 10. ALL60335 ..... 1/2" Collar With 10-32 Screw
ALL60336 ..... 5/8" Collar With 1/4"-28 Screw

106 www.allstarperformance.com
