UNIDIRECTIONAL FILTER CEILINGS

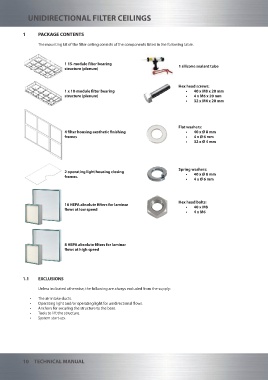

1 PACKAGE CONTENTS

The mounting kit of the filter ceiling consists of the components listed in the following table.

1 15-module filter bearing
structure (plenum) 1 silicone sealant tube

Hex head screws:
1 x 10-module filter bearing • 40 x M8 x 20 mm
structure (plenum) • 4 x M6 x 20 mm
• 32 x M4 x 20 mm

Flat washers:
4 filter housing aesthetic finishing • 40 x Ø 8 mm
frames • 4 x Ø 6 mm
• 32 x Ø 4 mm

Spring washers:
2 operating light housing closing • 40 x Ø 8 mm
frames.
• 4 x Ø 6 mm

Hex head bolts:
16 HEPA absolute filters for laminar
flows at low speed • 40 x M8
• 4 x M6

8 HEPA absolute filters for laminar
flows at high speed

1.1 EXCLUSIONS

Unless indicated otherwise, the following are always excluded from the supply:

• The air intake ducts.
• Operating light and/or operating light for unidirectional flows.
• Anchors for securing the structure to the base.
• Tools to lift the structure.
• System start-up.

10 TECHNICAL MANUAL
