Chief Architect X10 Reference Manual

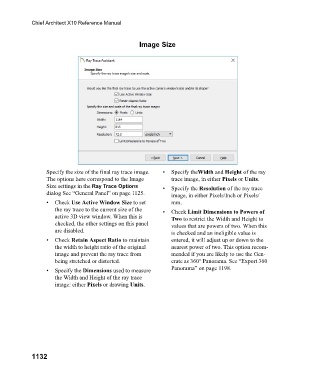

Image Size

Specify the size of the final ray trace image. • Specify theWidth and Height of the ray
The options here correspond to the Image trace image, in either Pixels or Units.
Size settings in the Ray Trace Options • Specify the Resolution of the ray trace
dialog See “General Panel” on page 1125. image, in either Pixels/Inch or Pixels/
• Check Use Active Window Size to set mm.
the ray trace to the current size of the • Check Limit Dimensions to Powers of
active 3D view window. When this is Two to restrict the Width and Height to
checked, the other settings on this panel values that are powers of two. When this
are disabled. is checked and an ineligible value is
• Check Retain Aspect Ratio to maintain entered, it will adjust up or down to the
the width to height ratio of the original nearest power of two. This option recom-
image and prevent the ray trace from mended if you are likely to use the Gen-
being stretched or distorted. erate as 360° Panorama. See “Export 360
• Specify the Dimensions used to measure Panorama” on page 1198.
the Width and Height of the ray trace
image: either Pixels or drawing Units.

1132
