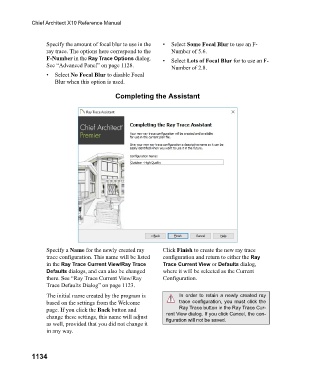

Chief Architect X10 Reference Manual

Specify the amount of focal blur to use in the • Select Some Focal Blur to use an F-
ray trace. The options here correspond to the Number of 5.6.
F-Number in the Ray Trace Options dialog. • Select Lots of Focal Blur for to use an F-
See “Advanced Panel” on page 1128. Number of 2.8.
• Select No Focal Blur to disable Focal
Blur when this option is used.

Completing the Assistant

Specify a Name for the newly created ray Click Finish to create the new ray trace
trace configuration. This name will be listed configuration and return to either the Ray
in the Ray Trace Current View/Ray Trace Trace Current View or Defaults dialog,
Defaults dialogs, and can also be changed where it will be selected as the Current
there. See “Ray Trace Current View/Ray Configuration.
Trace Defaults Dialog” on page 1123.
The initial name created by the program is In order to retain a newly created ray
based on the settings from the Welcome trace configuration, you must click the
page. If you click the Back button and Ray Trace button in the Ray Trace Cur-
change these settings, this name will adjust rent View dialog. If you click Cancel, the con-
figuration will not be saved.
as well, provided that you did not change it
in any way.

1134
