Chief Architect X10 Reference Manual

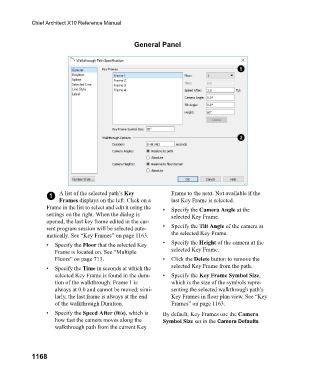

General Panel

1 A list of the selected path’s Key Frame to the next. Not available if the
Frames displays on the left. Click on a last Key Frame is selected.
Frame in the list to select and edit it using the • Specify the Camera Angle at the
settings on the right. When the dialog is selected Key Frame.
opened, the last key frame edited in the cur-
rent program session will be selected auto- • Specify the Tilt Angle of the camera at
matically. See “Key Frames” on page 1163. the selected Key Frame.
• Specify the Floor that the selected Key • Specify the Height of the camera at the
Frame is located on. See “Multiple selected Key Frame.
Floors” on page 713. • Click the Delete button to remove the
• Specify the Time in seconds at which the selected Key Frame from the path.
selected Key Frame is found in the dura- • Specify the Key Frame Symbol Size,
tion of the walkthrough. Frame 1 is which is the size of the symbols repre-
always at 0.0 and cannot be moved; simi- senting the selected walkthrough path’s
larly, the last frame is always at the end Key Frames in floor plan view. See “Key
of the walkthrough Duration. Frames” on page 1163.
• Specify the Speed After (ft/s), which is By default, Key Frames use the Camera
how fast the camera moves along the Symbol Size set in the Camera Defaults
walkthrough path from the current Key

1168
