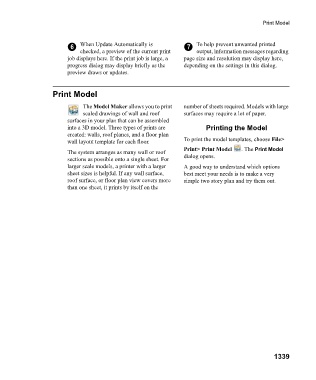

Page 1340 - Chief Architect Reference Manual

Print Model

6 When Update Automatically is 7 To help prevent unwanted printed
checked, a preview of the current print output, information messages regarding
job displays here. If the print job is large, a page size and resolution may display here,
progress dialog may display briefly as the depending on the settings in this dialog.
preview draws or updates.

Print Model

The Model Maker allows you to print number of sheets required. Models with large
scaled drawings of wall and roof surfaces may require a lot of paper.
surfaces in your plan that can be assembled
into a 3D model. Three types of prints are Printing the Model
created: walls, roof planes, and a floor plan
wall layout template for each floor. To print the model templates, choose File>
Print> Print Model . The Print Model
The system arranges as many wall or roof
sections as possible onto a single sheet. For dialog opens.
larger scale models, a printer with a larger A good way to understand which options
sheet sizes is helpful. If any wall surface, best meet your needs is to make a very
roof surface, or floor plan view covers more simple two story plan and try them out.
than one sheet, it prints by itself on the

1339
