Chief Architect X10 Reference Manual

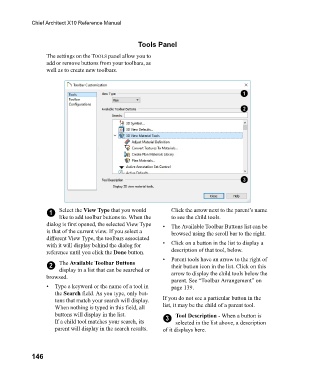

Tools Panel
The settings on the TOOLS panel allow you to
add or remove buttons from your toolbars, as
well as to create new toolbars.

1 Select the View Type that you would Click the arrow next to the parent’s name
like to add toolbar buttons to. When the to see the child tools.
dialog is first opened, the selected View Type • The Available Toolbar Buttons list can be
is that of the current view. If you select a browsed using the scroll bar to the right.
different View Type, the toolbars associated
with it will display behind the dialog for • Click on a button in the list to display a
reference until you click the Done button. description of that tool, below.
• Parent tools have an arrow to the right of
2 The Available Toolbar Buttons their button icon in the list. Click on this
display in a list that can be searched or
browsed. arrow to display the child tools below the
parent. See “Toolbar Arrangement” on
• Type a keyword or the name of a tool in page 139.
the Search field. As you type, only but-
tons that match your search will display. If you do not see a particular button in the
When nothing is typed in this field, all list, it may be the child of a parent tool.
buttons will display in the list. Tool Description - When a button is
If a child tool matches your search, its 3 selected in the list above, a description
parent will display in the search results. of it displays here.

146
