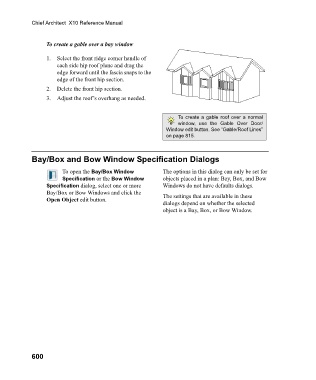

Chief Architect X10 Reference Manual

To create a gable over a bay window

1. Select the front ridge corner handle of
each side hip roof plane and drag the
edge forward until the fascia snaps to the
edge of the front hip section.
2. Delete the front hip section.
3. Adjust the roof’s overhang as needed.

To create a gable roof over a normal
window, use the Gable Over Door/
Window edit button. See “Gable/Roof Lines”
on page 815.

Bay/Box and Bow Window Specification Dialogs

To open the Bay/Box Window The options in this dialog can only be set for
Specification or the Bow Window objects placed in a plan: Bay, Box, and Bow
Specification dialog, select one or more Windows do not have defaults dialogs.
Bay/Box or Bow Windows and click the The settings that are available in these
Open Object edit button.
dialogs depend on whether the selected
object is a Bay, Box, or Bow Window.

600
