Bay/Box and Bow Window Specification Dialogs

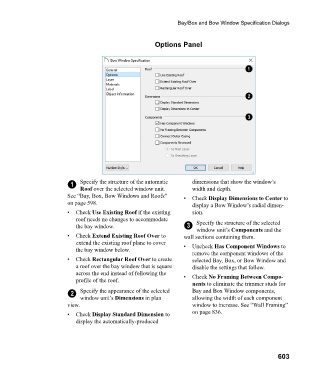

Options Panel

1 Specify the structure of the automatic dimensions that show the window’s
Roof over the selected window unit. width and depth.
See “Bay, Box, Bow Windows and Roofs” • C h e c k Display Dimensions to Center to
on page 598. display a Bow Window’s radial dimen-
• Check Use Existing Roof if the existing sion.
roof needs no changes to accommodate Specify the structure of the selected
the bay window. 3
window unit’s Components and the
• Check Extend Existing Roof Over to wall sections containing them.
extend the existing roof plane to cover • Uncheck Has Component Windows to
the bay window below.
remove the component windows of the
• Check Rectangular Roof Over to create selected Bay, Box, or Bow Window and
a roof over the bay window that is square disable the settings that follow.
across the end instead of following the • C h e c k No Framing Between Compo-
profile of the roof.
nents to eliminate the trimmer studs for
2 Specify the appearance of the selected Bay and Box Window components,
window unit’s Dimensions in plan allowing the width of each component
view. window to increase. See “Wall Framing”
• Check Display Standard Dimension to on page 836.
display the automatically-produced
