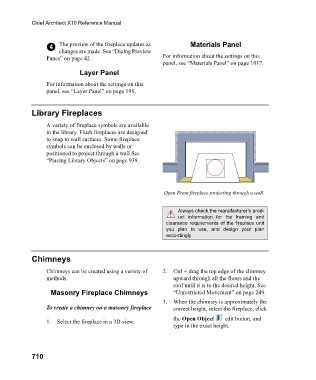

Chief Architect X10 Reference Manual

4 The preview of the fireplace updates as Materials Panel
changes are made. See “Dialog Preview
Panes” on page 42. For information about the settings on this
panel, see “Materials Panel” on page 1017.
Layer Panel
For information about the settings on this
panel, see “Layer Panel” on page 195.

Library Fireplaces

A variety of fireplace symbols are available
in the library. Flush fireplaces are designed
to snap to wall surfaces. Some fireplace
symbols can be enclosed by walls or
positioned to project through a wall.See
“Placing Library Objects” on page 939.

Open Front fireplace projecting through a wall

Always check the manufacturer’s prod-
uct information for the framing and
clearance requirements of the fireplace unit
you plan to use, and design your plan
accordingly

Chimneys

Chimneys can be created using a variety of 2. Ctrl + drag the top edge of the chimney
methods. upward through all the floors and the
roof until it is to the desired height. See
Masonry Fireplace Chimneys “Unrestricted Movement” on page 249.

3. When the chimney is approximately the
To create a chimney on a masonry fireplace correct height, select the fireplace, click
the Open Object edit button, and
1. Select the fireplace in a 3D view.
type in the exact height.

710
