The Reference Floor

Display Options. See “Layer Display dialogs. While the default Reference Display
Options Dialog” on page 190. Set is usually sufficient, you also can create
as additional layer sets and use any of them
The current Reference Floor layer set can be for the Reference Floor. See “Layer Set
specified in both the Change Floor/ Management” on page 189.
Reference and Layer Set Management

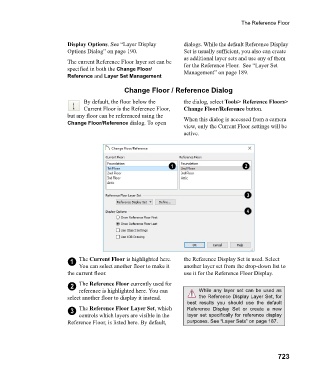

Change Floor / Reference Dialog

By default, the floor below the the dialog, select Tools> Reference Floors>
Current Floor is the Reference Floor, Change Floor/Reference button.
but any floor can be referenced using the When this dialog is accessed from a camera
Change Floor/Reference dialog. To open
view, only the Current Floor settings will be
active.

1 The Current Floor is highlighted here. the Reference Display Set is used. Select
You can select another floor to make it another layer set from the drop-down list to
the current floor. use it for the Reference Floor Display.

2 The Reference Floor currently used for
reference is highlighted here. You can While any layer set can be used as
select another floor to display it instead. the Reference Display Layer Set, for
best results you should use the default
3 The Reference Floor Layer Set, which Reference Display Set or create a new
controls which layers are visible in the layer set specifically for reference display
Reference Floor, is listed here. By default, purposes. See “Layer Sets” on page 187.
