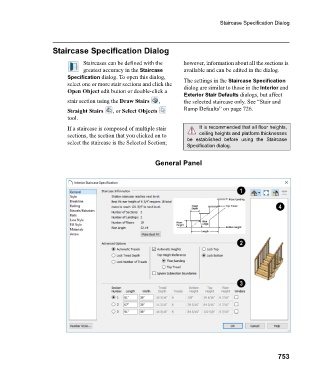

Staircase Specification Dialog

Staircase Specification Dialog

Staircases can be defined with the however, information about all the sections is
greatest accuracy in the Staircase available and can be edited in the dialog.
Specification dialog. To open this dialog, The settings in the Staircase Specification
select one or more stair sections and click the dialog are similar to those in the Interior and
Open Object edit button or double-click a
Exterior Stair Defaults dialogs, but affect
stair section using the Draw Stairs , the selected staircase only. See “Stair and
Straight Stairs , o r Select Objects Ramp Defaults” on page 726.
tool.

If a staircase is composed of multiple stair It is recommended that all floor heights,
sections, the section that you clicked on to ceiling heights and platform thicknesses
select the staircase is the Selected Section; be established before using the Staircase
Specification dialog.

General Panel

753
