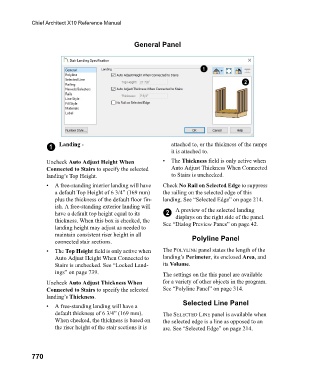

Page 770 - Chief Architect Reference Manual

Chief Architect X10 Reference Manual

General Panel

1 Landing - attached to, or the thickness of the ramps
it is attached to.
Uncheck Auto Adjust Height When • The Thickness field is only active when
Connected to Stairs to specify the selected Auto Adjust Thickness When Connected
landing’s Top Height. to Stairs is unchecked.
• A free-standing interior landing will have Check No Rail on Selected Edge to suppress
a default Top Height of 6 3/4” (169 mm) the railing on the selected edge of this
plus the thickness of the default floor fin- landing. See “Selected Edge” on page 214.
ish. A free-standing exterior landing will A preview of the selected landing
have a default top height equal to its 2 displays on the right side of the panel.
thickness. When this box is checked, the See “Dialog Preview Panes” on page 42.
landing height may adjust as needed to
maintain consistent riser height in all
connected stair sections. Polyline Panel
• The Top Height field is only active when The POLYLINE panel states the length of the
Auto Adjust Height When Connected to landing’s Perimeter, its enclosed Area, and
Stairs is unchecked. See “Locked Land- its Volume.
ings” on page 739. The settings on the this panel are available
Uncheck Auto Adjust Thickness When for a variety of other objects in the program.
Connected to Stairs to specify the selected See “Polyline Panel” on page 314.
landing’s Thickness.
Selected Line Panel
• A free-standing landing will have a
default thickness of 6 3/4” (169 mm). The SELECTED LINE panel is available when
When checked, the thickness is based on the selected edge is a line as opposed to an
the riser height of the stair sections it is arc. See “Selected Edge” on page 214.

770
