AIRSTREAM™ SERIES DRYER

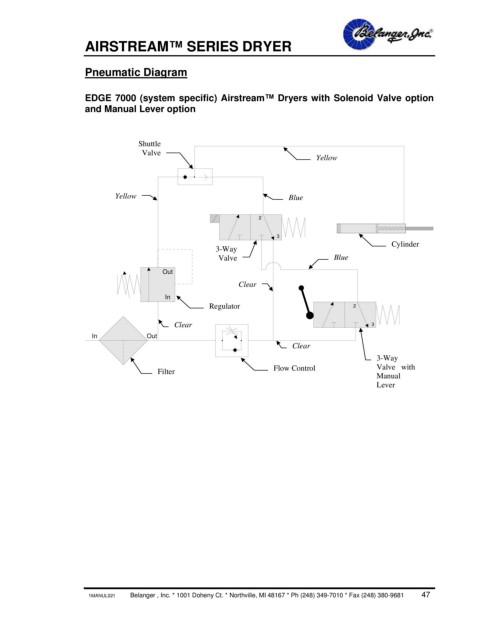

                       Pneumatic Diagram



                       EDGE 7000 (system specific) Airstream™ Dryers with Solenoid Valve option
                       and Manual Lever option



                                    Shuttle
                                     Valve
                                                                                  Yellow



                              Yellow                                       Blue


                                                                   2

                                                                        3
                                                                                                     Cylinder
                                                        3-Way
                                                         Valve                        Blue

                                          Out
                                                              Clear
                                           In
                                                      Regulator                            2

                                             Clear                                              3
                        In            Out
                                                                            Clear
                                                                                                 3-Way

                                         Filter                        Flow Control              Valve with
                                                                                                 Manual
                                                                                                 Lever
