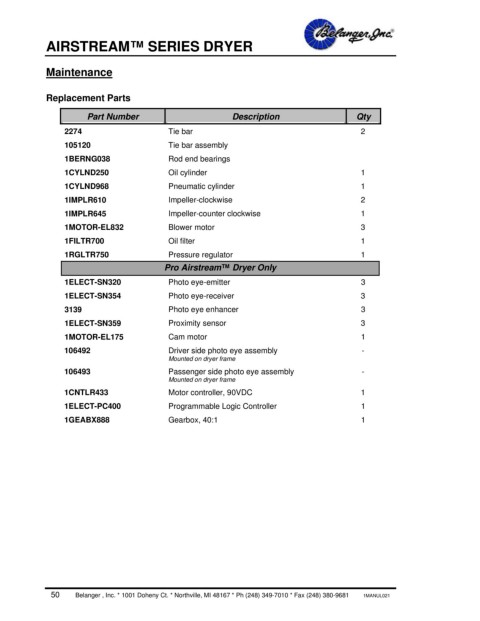

AIRSTREAM™ SERIES DRYER

Maintenance

Replacement Parts

Part Number Description Qty
2274 Tie bar 2
105120 Tie bar assembly

1BERNG038 Rod end bearings
1CYLND250 Oil cylinder 1
1CYLND968 Pneumatic cylinder 1
1IMPLR610 Impeller-clockwise 2
1IMPLR645 Impeller-counter clockwise 1

1MOTOR-EL832 Blower motor 3
1FILTR700 Oil filter 1
1RGLTR750 Pressure regulator 1
Pro Airstream™ Dryer Only
1ELECT-SN320 Photo eye-emitter 3
1ELECT-SN354 Photo eye-receiver 3

3139 Photo eye enhancer 3
1ELECT-SN359 Proximity sensor 3
1MOTOR-EL175 Cam motor 1
106492 Driver side photo eye assembly -
Mounted on dryer frame
106493 Passenger side photo eye assembly -
Mounted on dryer frame
1CNTLR433 Motor controller, 90VDC 1
1ELECT-PC400 Programmable Logic Controller 1
1GEABX888 Gearbox, 40:1 1
