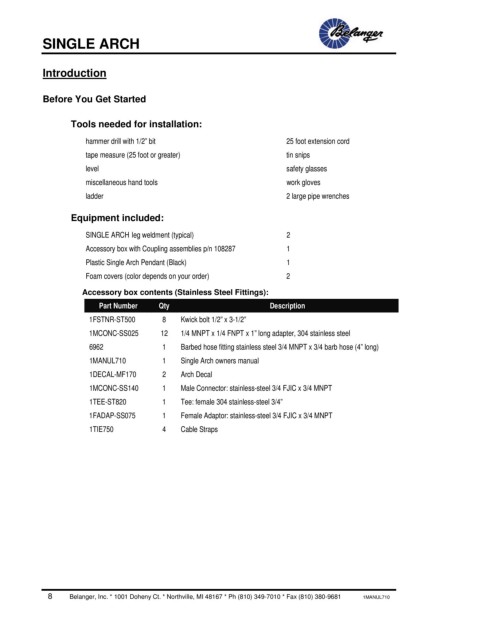

SINGLE ARCH
Introduction
Before You Get Started
Tools needed for installation:
hammer drill with 1/2” bit 25 foot extension cord
tape measure (25 foot or greater) tin snips
level safety glasses
miscellaneous hand tools work gloves
ladder 2 large pipe wrenches
Equipment included:
SINGLE ARCH leg weldment (typical) 2
Accessory box with Coupling assemblies p/n 108287 1
Plastic Single Arch Pendant (Black) 1
Foam covers (color depends on your order) 2
Accessory box contents (Stainless Steel Fittings):
Part Number Qty Description
1FSTNR-ST500 8 Kwick bolt 1/2” x 3-1/2”
1MCONC-SS025 12 1/4 MNPT x 1/4 FNPT x 1” long adapter, 304 stainless steel
6962 1 Barbed hose fitting stainless steel 3/4 MNPT x 3/4 barb hose (4” long)
1MANUL710 1 Single Arch owners manual
1DECAL-MF170 2 Arch Decal
1MCONC-SS140 1 Male Connector: stainless-steel 3/4 FJIC x 3/4 MNPT
1TEE-ST820 1 Tee: female 304 stainless-steel 3/4”
1FADAP-SS075 1 Female Adaptor: stainless-steel 3/4 FJIC x 3/4 MNPT
1TIE750 4 Cable Straps
