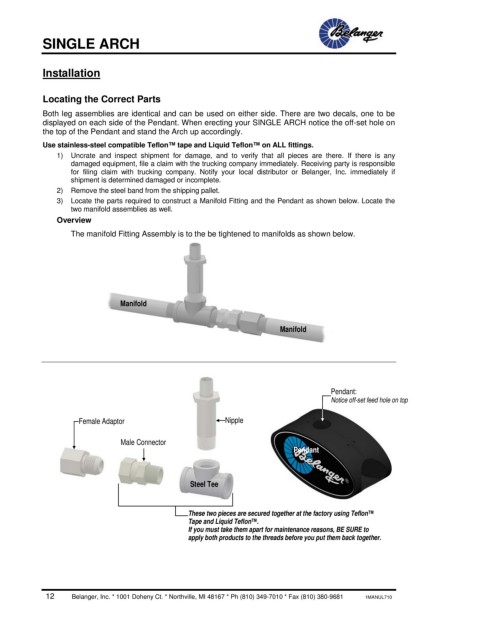

Page 14 - Single Arch

SINGLE ARCH

Installation

Locating the Correct Parts
Both leg assemblies are identical and can be used on either side. There are two decals, one to be
displayed on each side of the Pendant. When erecting your SINGLE ARCH notice the off-set hole on
the top of the Pendant and stand the Arch up accordingly.
Use stainless-steel compatible Teflon™ tape and Liquid Teflon™ on ALL fittings.
1) Uncrate and inspect shipment for damage, and to verify that all pieces are there. If there is any
damaged equipment, file a claim with the trucking company immediately. Receiving party is responsible
for filing claim with trucking company. Notify your local distributor or Belanger, Inc. immediately if
shipment is determined damaged or incomplete.
2) Remove the steel band from the shipping pallet.
3) Locate the parts required to construct a Manifold Fitting and the Pendant as shown below. Locate the
two manifold assemblies as well.
Overview
The manifold Fitting Assembly is to the be tightened to manifolds as shown below.

Manifold

Manifold

Pendant:
Notice off-set feed hole on top

Female Adaptor Nipple

Male Connector
Pendant
Pendant

Steel Tee

These two pieces are secured together at the factory using Teflon™
Tape and Liquid Teflon™.
If you must take them apart for maintenance reasons, BE SURE to
apply both products to the threads before you put them back together.
