SINGLE ARCH

Installation

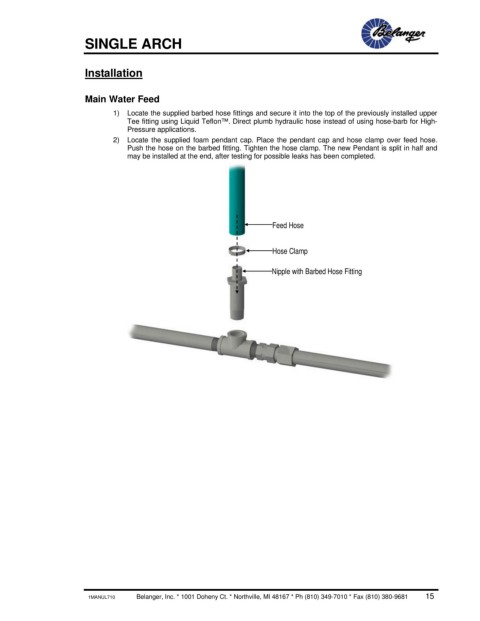

Main Water Feed
1) Locate the supplied barbed hose fittings and secure it into the top of the previously installed upper
Tee fitting using Liquid Teflon™. Direct plumb hydraulic hose instead of using hose-barb for High-
Pressure applications.
2) Locate the supplied foam pendant cap. Place the pendant cap and hose clamp over feed hose.
Push the hose on the barbed fitting. Tighten the hose clamp. The new Pendant is split in half and
may be installed at the end, after testing for possible leaks has been completed.

Feed Hose

Hose Clamp

Nipple with Barbed Hose Fitting
