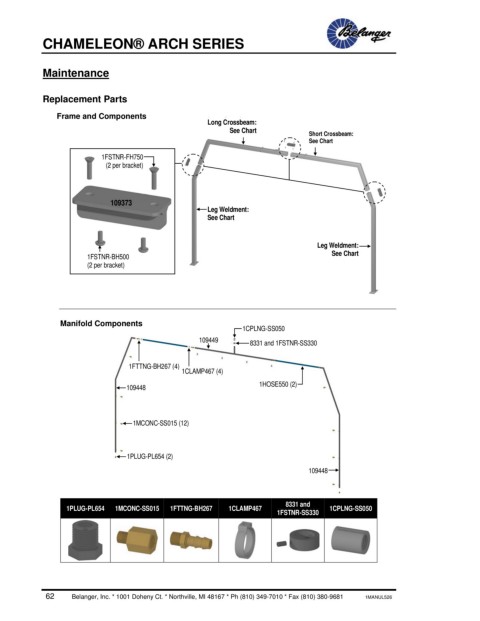

CHAMELEON® ARCH SERIES

Maintenance

Replacement Parts

Frame and Components
Long Crossbeam:
Long Crossbeam:
See Chart
See Chart Short Crossbeam:
See Chart
1FSTNR-FH750
(2 per bracket)

109373
Leg Weldment:
See Chart

Leg Weldment:

1FSTNR-BH500 See Chart
(2 per bracket)

Manifold Components
1CPLNG-SS050
109449 8331 and 1FSTNR-SS330

1FTTNG-BH267 (4)
1CLAMP467 (4)
109448 1HOSE550 (2)

1MCONC-SS015 (12)

1PLUG-PL654 (2)
109448

8331 and
1PLUG-PL654 1MCONC-SS015 1FTTNG-BH267 1CLAMP467 1CPLNG-SS050
1FSTNR-SS330
