P. 67

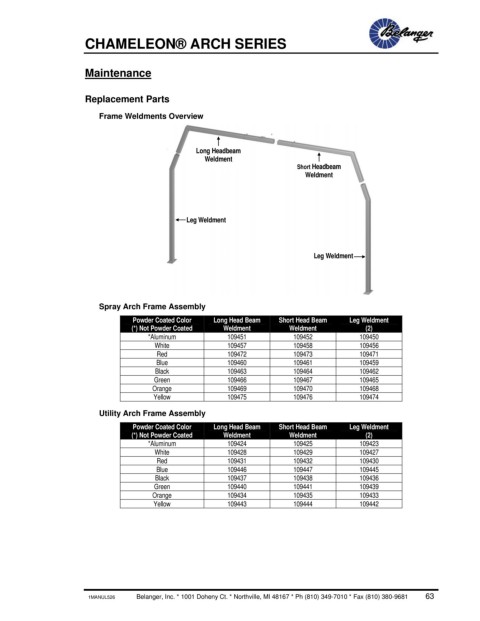

CHAMELEON® ARCH SERIES
Maintenance
Replacement Parts
Frame Weldments Overview
Long Headbeam
Weldment
Short Headbeam
Weldment
Leg Weldment
Leg Weldment
Spray Arch Frame Assembly
Powder Coated Color Long Head Beam Short Head Beam Leg Weldment
(*) Not Powder Coated Weldment Weldment (2)
*Aluminum 109451 109452 109450
White 109457 109458 109456
Red 109472 109473 109471
Blue 109460 109461 109459
Black 109463 109464 109462
Green 109466 109467 109465
Orange 109469 109470 109468
Yellow 109475 109476 109474
Utility Arch Frame Assembly
Powder Coated Color Long Head Beam Short Head Beam Leg Weldment
(*) Not Powder Coated Weldment Weldment (2)
*Aluminum 109424 109425 109423
White 109428 109429 109427
Red 109431 109432 109430
Blue 109446 109447 109445
Black 109437 109438 109436
Green 109440 109441 109439
Orange 109434 109435 109433
Yellow 109443 109444 109442
1MANUL526 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (810) 349-7010 * Fax (810) 380-9681 63
