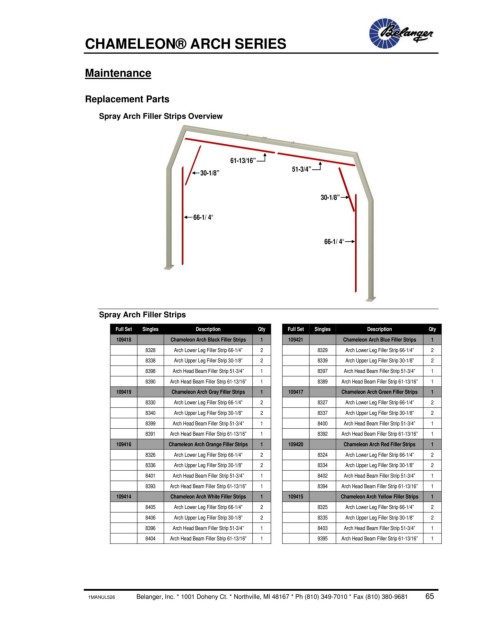

Page 69 - Chameleon® Arch Series
P. 69
CHAMELEON® ARCH SERIES
Maintenance
Replacement Parts
Spray Arch Filler Strips Overview
61-13/16”
51-3/4”
30-1/8”
30-1/8”
66-1/ 4“
66-1/ 4“
Spray Arch Filler Strips
Full Set Singles Description Qty Full Set Singles Description Qty
109418 Chameleon Arch Black Filler Strips 1 109421 Chameleon Arch Blue Filler Strips 1
8328 Arch Lower Leg Filler Strip 66-1/4” 2 8329 Arch Lower Leg Filler Strip 66-1/4” 2
8338 Arch Upper Leg Filler Strip 30-1/8” 2 8339 Arch Upper Leg Filler Strip 30-1/8” 2
8398 Arch Head Beam Filler Strip 51-3/4” 1 8397 Arch Head Beam Filler Strip 51-3/4” 1
8390 Arch Head Beam Filler Strip 61-13/16” 1 8389 Arch Head Beam Filler Strip 61-13/16” 1
109419 Chameleon Arch Gray Filler Strips 1 109417 Chameleon Arch Green Filler Strips 1
8330 Arch Lower Leg Filler Strip 66-1/4” 2 8327 Arch Lower Leg Filler Strip 66-1/4” 2
8340 Arch Upper Leg Filler Strip 30-1/8” 2 8337 Arch Upper Leg Filler Strip 30-1/8” 2
8399 Arch Head Beam Filler Strip 51-3/4” 1 8400 Arch Head Beam Filler Strip 51-3/4” 1
8391 Arch Head Beam Filler Strip 61-13/16” 1 8392 Arch Head Beam Filler Strip 61-13/16” 1
109416 Chameleon Arch Orange Filler Strips 1 109420 Chameleon Arch Red Filler Strips 1
8326 Arch Lower Leg Filler Strip 66-1/4” 2 8324 Arch Lower Leg Filler Strip 66-1/4” 2
8336 Arch Upper Leg Filler Strip 30-1/8” 2 8334 Arch Upper Leg Filler Strip 30-1/8” 2
8401 Arch Head Beam Filler Strip 51-3/4” 1 8402 Arch Head Beam Filler Strip 51-3/4” 1
8393 Arch Head Beam Filler Strip 61-13/16” 1 8394 Arch Head Beam Filler Strip 61-13/16” 1
109414 Chameleon Arch White Filler Strips 1 109415 Chameleon Arch Yellow Filler Strips 1
8405 Arch Lower Leg Filler Strip 66-1/4” 2 8325 Arch Lower Leg Filler Strip 66-1/4” 2
8406 Arch Upper Leg Filler Strip 30-1/8” 2 8335 Arch Upper Leg Filler Strip 30-1/8” 2
8396 Arch Head Beam Filler Strip 51-3/4” 1 8403 Arch Head Beam Filler Strip 51-3/4” 1
8404 Arch Head Beam Filler Strip 61-13/16” 1 9395 Arch Head Beam Filler Strip 61-13/16” 1
1MANUL526 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (810) 349-7010 * Fax (810) 380-9681 65
