PREP JET SYSTEM
Maintenance

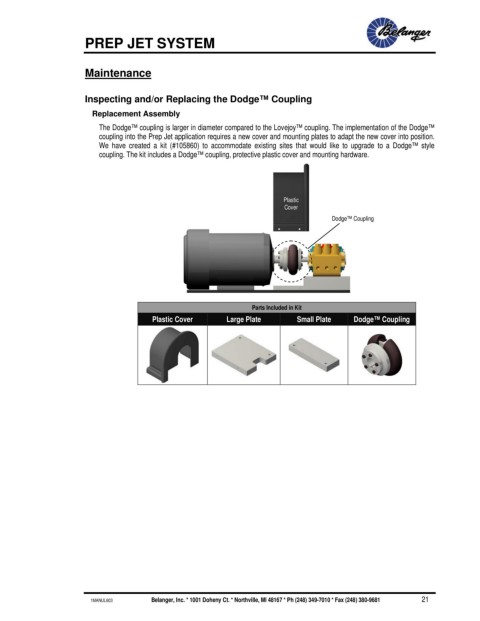

Inspecting and/or Replacing the Dodge™ Coupling
Replacement Assembly
The Dodge™ coupling is larger in diameter compared to the Lovejoy™ coupling. The implementation of the Dodge™
coupling into the Prep Jet application requires a new cover and mounting plates to adapt the new cover into position.
We have created a kit (#105860) to accommodate existing sites that would like to upgrade to a Dodge™ style
coupling. The kit includes a Dodge™ coupling, protective plastic cover and mounting hardware.
Plastic
Cover
Dodge™ Coupling
Parts Included in Kit
Plastic Cover Large Plate Small Plate Dodge™ Coupling
