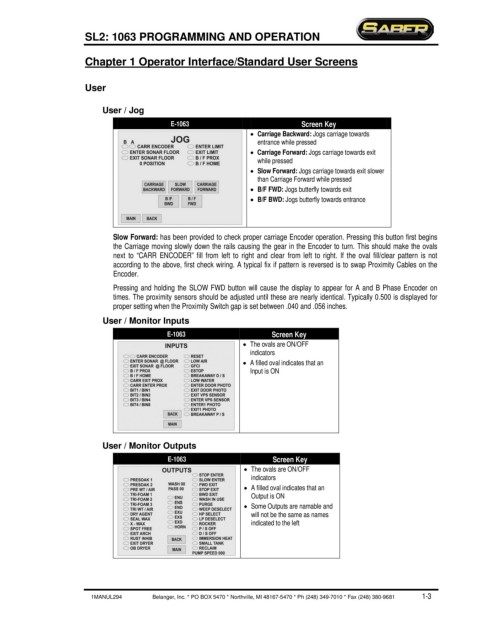

SL2: 1063 PROGRAMMING AND OPERATION

Chapter 1 Operator Interface/Standard User Screens

User

User / Jog
E-1063 Screen Key
• Carriage Backward: Jogs carriage towards
entrance while pressed
• Carriage Forward: Jogs carriage towards exit
while pressed
• Slow Forward: Jogs carriage towards exit slower
than Carriage Forward while pressed
• B/F FWD: Jogs butterfly towards exit
• B/F BWD: Jogs butterfly towards entrance

Slow Forward: has been provided to check proper carriage Encoder operation. Pressing this button first begins
the Carriage moving slowly down the rails causing the gear in the Encoder to turn. This should make the ovals
next to “CARR ENCODER” fill from left to right and clear from left to right. If the oval fill/clear pattern is not
according to the above, first check wiring. A typical fix if pattern is reversed is to swap Proximity Cables on the
Encoder.
Pressing and holding the SLOW FWD button will cause the display to appear for A and B Phase Encoder on
times. The proximity sensors should be adjusted until these are nearly identical. Typically 0.500 is displayed for
proper setting when the Proximity Switch gap is set between .040 and .056 inches.
User / Monitor Inputs
E-1063 Screen Key
• The ovals are ON/OFF
indicators
• A filled oval indicates that an
Input is ON

User / Monitor Outputs
E-1063 Screen Key
• The ovals are ON/OFF
indicators
• A filled oval indicates that an
Output is ON
• Some Outputs are namable and
will not be the same as names
indicated to the left

1MANUL294 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1-3
