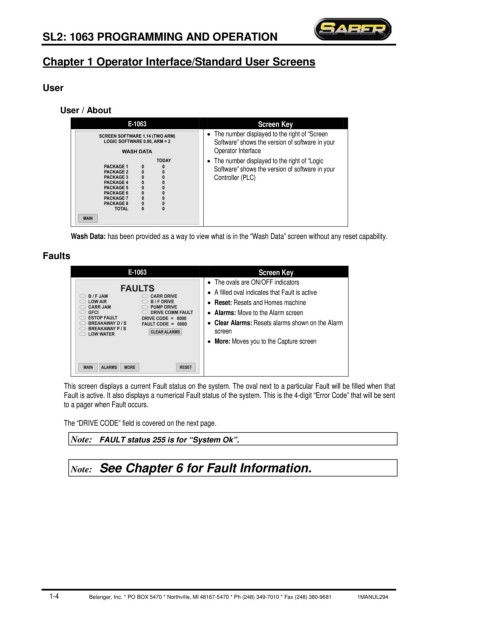

SL2: 1063 PROGRAMMING AND OPERATION

Chapter 1 Operator Interface/Standard User Screens

User

User / About
E-1063 Screen Key
• The number displayed to the right of “Screen
Software” shows the version of software in your
Operator Interface
• The number displayed to the right of “Logic
Software” shows the version of software in your
Controller (PLC)

Wash Data: has been provided as a way to view what is in the “Wash Data” screen without any reset capability.

Faults
E-1063 Screen Key
• The ovals are ON/OFF indicators
• A filled oval indicates that Fault is active
• Reset: Resets and Homes machine
• Alarms: Move to the Alarm screen
• Clear Alarms: Resets alarms shown on the Alarm
screen
• More: Moves you to the Capture screen

This screen displays a current Fault status on the system. The oval next to a particular Fault will be filled when that
Fault is active. It also displays a numerical Fault status of the system. This is the 4-digit “Error Code” that will be sent
to a pager when Fault occurs.
The “DRIVE CODE” field is covered on the next page.

Note: FAULT status 255 is for “System Ok”.

Note: See Chapter 6 for Fault Information.
