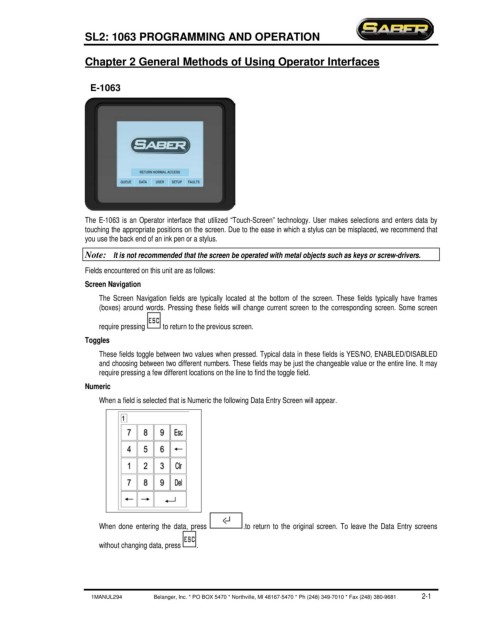

Page 19 - Saber® SL2 - E-1063 Programming and Operation Manual

SL2: 1063 PROGRAMMING AND OPERATION

Chapter 2 General Methods of Using Operator Interfaces

E-1063

The E-1063 is an Operator interface that utilized “Touch-Screen” technology. User makes selections and enters data by
touching the appropriate positions on the screen. Due to the ease in which a stylus can be misplaced, we recommend that
you use the back end of an ink pen or a stylus.

Note: It is not recommended that the screen be operated with metal objects such as keys or screw-drivers.
Fields encountered on this unit are as follows:
Screen Navigation

The Screen Navigation fields are typically located at the bottom of the screen. These fields typically have frames
(boxes) around words. Pressing these fields will change current screen to the corresponding screen. Some screen

require pressing to return to the previous screen.
Toggles

These fields toggle between two values when pressed. Typical data in these fields is YES/NO, ENABLED/DISABLED
and choosing between two different numbers. These fields may be just the changeable value or the entire line. It may
require pressing a few different locations on the line to find the toggle field.

Numeric
When a field is selected that is Numeric the following Data Entry Screen will appear.

When done entering the data, press .to return to the original screen. To leave the Data Entry screens

without changing data, press .
