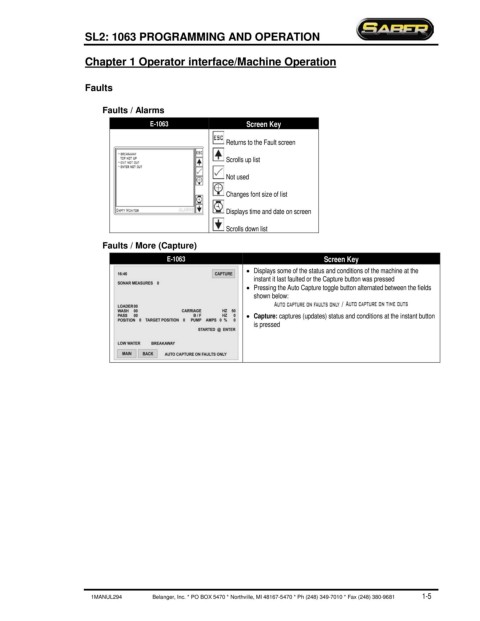

SL2: 1063 PROGRAMMING AND OPERATION
Chapter 1 Operator interface/Machine Operation
Faults
Faults / Alarms
E-1063 Screen Key
Returns to the Fault screen
Scrolls up list
Not used
Changes font size of list
Displays time and date on screen
Scrolls down list
Faults / More (Capture)
E-1063 Screen Key
• Displays some of the status and conditions of the machine at the
instant it last faulted or the Capture button was pressed
• Pressing the Auto Capture toggle button alternated between the fields
shown below:
/
• Capture: captures (updates) status and conditions at the instant button
is pressed
