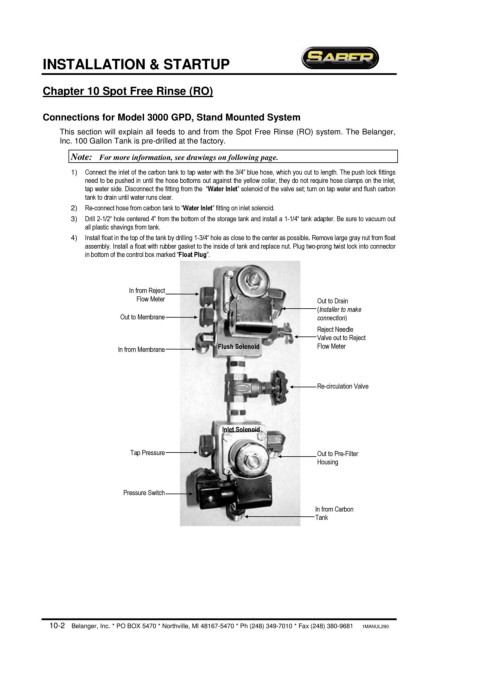

INSTALLATION & STARTUP

Chapter 10 Spot Free Rinse (RO)

Connections for Model 3000 GPD, Stand Mounted System
This section will explain all feeds to and from the Spot Free Rinse (RO) system. The Belanger,
Inc. 100 Gallon Tank is pre-drilled at the factory.

Note: For more information, see drawings on following page.
1) Connect the inlet of the carbon tank to tap water with the 3/4” blue hose, which you cut to length. The push lock fittings
need to be pushed in until the hose bottoms out against the yellow collar, they do not require hose clamps on the inlet,
tap water side. Disconnect the fitting from the “Water Inlet” solenoid of the valve set; turn on tap water and flush carbon
tank to drain until water runs clear.
2) Re-connect hose from carbon tank to “Water Inlet” fitting on inlet solenoid.
3) Drill 2-1/2“ hole centered 4” from the bottom of the storage tank and install a 1-1/4“ tank adapter. Be sure to vacuum out
all plastic shavings from tank.
4) Install float in the top of the tank by drilling 1-3/4“ hole as close to the center as possible. Remove large gray nut from float
assembly. Install a float with rubber gasket to the inside of tank and replace nut. Plug two-prong twist lock into connector
in bottom of the control box marked “Float Plug”.

In from Reject
Flow Meter Out to Drain
(Installer to make
Out to Membrane connection)
Reject Needle
Valve out to Reject
Flush Solenoid Flow Meter
In from Membrane

Re-circulation Valve

Inlet Solenoid

Tap Pressure Out to Pre-Filter
Housing

Pressure Switch
In from Carbon
Tank
