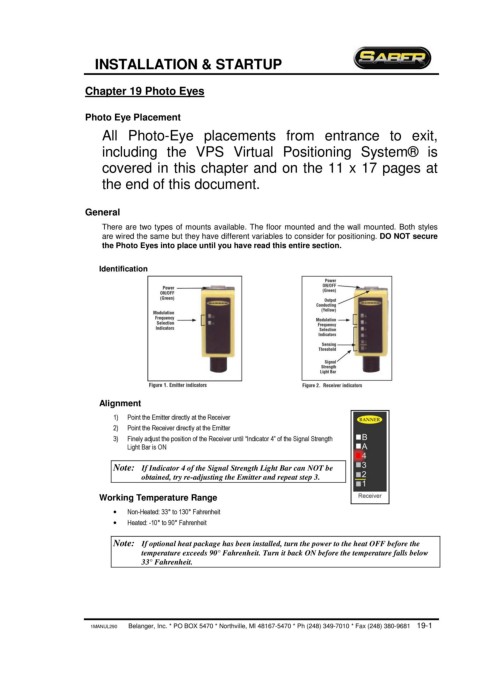

Page 223 - Saber® Installation & Startup

INSTALLATION & STARTUP

Chapter 19 Photo Eyes

Photo Eye Placement
All Photo-Eye placements from entrance to exit,

including the VPS Virtual Positioning System® is
covered in this chapter and on the 11 x 17 pages at

the end of this document.

General

There are two types of mounts available. The floor mounted and the wall mounted. Both styles
are wired the same but they have different variables to consider for positioning. DO NOT secure
the Photo Eyes into place until you have read this entire section.

Identification

Alignment
1) Point the Emitter directly at the Receiver
2) Point the Receiver directly at the Emitter
3) Finely adjust the position of the Receiver until “Indicator 4” of the Signal Strength
Light Bar is ON

Note: If Indicator 4 of the Signal Strength Light Bar can NOT be
obtained, try re-adjusting the Emitter and repeat step 3.

Working Temperature Range
· Non-Heated: 33° to 130° Fahrenheit
· Heated: -10° to 90° Fahrenheit

Note: If optional heat package has been installed, turn the power to the heat OFF before the
temperature exceeds 90° Fahrenheit. Turn it back ON before the temperature falls below
33° Fahrenheit.
