DRYLITE DRYER

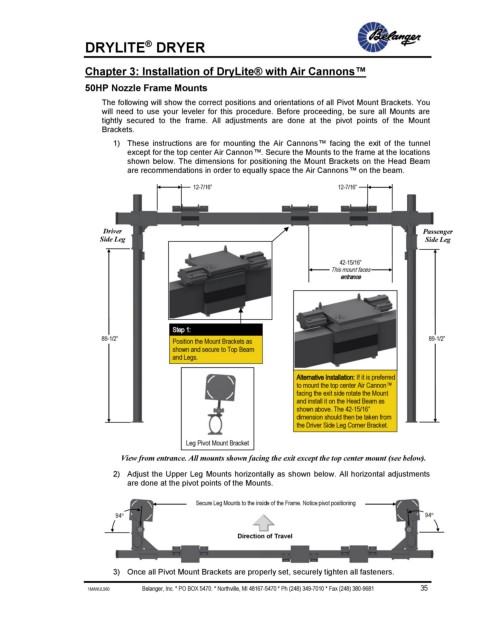

Chapter 3: Installation of DryLite® with Air Cannons™

50HP Nozzle Frame Mounts

The following will show the correct positions and orientations of all Pivot Mount Brackets. You
will need to use your leveler for this procedure. Before proceeding, be sure all Mounts are
tightly secured to the frame. All adjustments are done at the pivot points of the Mount
Brackets.
1) These instructions are for mounting the Air Cannons™ facing the exit of the tunnel
except for the top center Air Cannon™. Secure the Mounts to the frame at the locations
shown below. The dimensions for positioning the Mount Brackets on the Head Beam
are recommendations in order to equally space the Air Cannons™ on the beam.

12-7/16” 12-7/16”

Driver Passenger
Side Leg Side Leg

42-15/16”
This mount faces
entrance

Step 1:
89-1/2” Position the Mount Brackets as 89-1/2”
shown and secure to Top Beam
and Legs.

Alternative Installation: If it is preferred
to mount the top center Air Cannon™
facing the exit side rotate the Mount
and install it on the Head Beam as
shown above. The 42-15/16”
Pivot dimension should then be taken from
Point the Driver Side Leg Corner Bracket.

Leg Pivot Mount Bracket

View from entrance. All mounts shown facing the exit except the top center mount (see below).

2) Adjust the Upper Leg Mounts horizontally as shown below. All horizontal adjustments
are done at the pivot points of the Mounts.

Secure Leg Mounts to the inside of the Frame. Notice pivot positioning
94 94

Direction of Travel

3) Once all Pivot Mount Brackets are properly set, securely tighten all fasteners.
