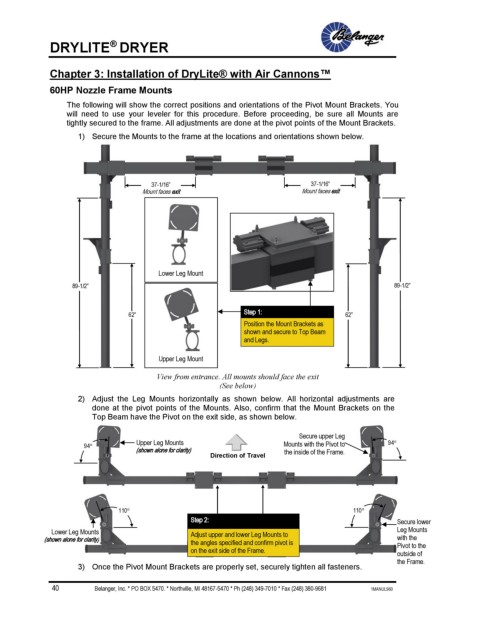

DRYLITE DRYER

Chapter 3: Installation of DryLite® with Air Cannons™

60HP Nozzle Frame Mounts
The following will show the correct positions and orientations of the Pivot Mount Brackets. You
will need to use your leveler for this procedure. Before proceeding, be sure all Mounts are
tightly secured to the frame. All adjustments are done at the pivot points of the Mount Brackets.
1) Secure the Mounts to the frame at the locations and orientations shown below.

37-1/16” 37-1/16”
Mount faces exit Mount faces exit

Pivot
Point

Lower Leg Mount
89-1/2” 89-1/2”

62” Step 1: 62”
Position the Mount Brackets as
Pivot shown and secure to Top Beam
Point and Legs.

Upper Leg Mount

View from entrance. All mounts should face the exit
(See below)
2) Adjust the Leg Mounts horizontally as shown below. All horizontal adjustments are
done at the pivot points of the Mounts. Also, confirm that the Mount Brackets on the
Top Beam have the Pivot on the exit side, as shown below.

Secure upper Leg
94 Upper Leg Mounts Mounts with the Pivot to 94
(shown alone for clarity) the inside of the Frame.
Direction of Travel

110 110
Step 2: Secure lower
Lower Leg Mounts Adjust upper and lower Leg Mounts to Leg Mounts
(shown alone for clarity) the angles specified and confirm pivot is with the
on the exit side of the Frame. Pivot to the
outside of

the Frame.
3) Once the Pivot Mount Brackets are properly set, securely tighten all fasteners.
