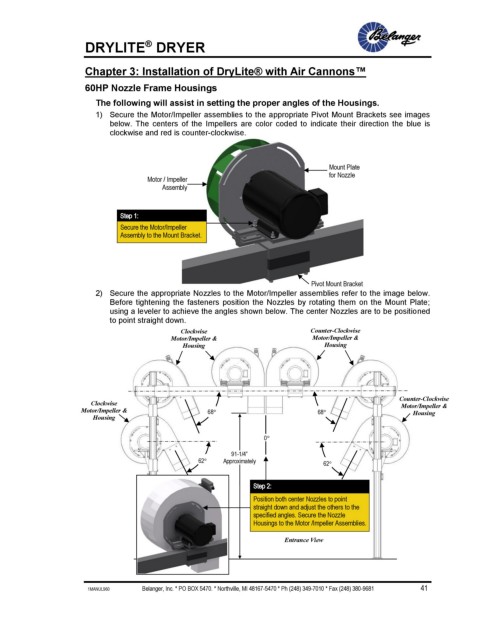

DRYLITE DRYER

Chapter 3: Installation of DryLite® with Air Cannons™

60HP Nozzle Frame Housings

The following will assist in setting the proper angles of the Housings.
1) Secure the Motor/Impeller assemblies to the appropriate Pivot Mount Brackets see images
below. The centers of the Impellers are color coded to indicate their direction the blue is
clockwise and red is counter-clockwise.

Mount Plate
for Nozzle
Motor / Impeller
Assembly

Step 1:
Secure the Motor/Impeller
Assembly to the Mount Bracket.

Pivot Mount Bracket
2) Secure the appropriate Nozzles to the Motor/Impeller assemblies refer to the image below.
Before tightening the fasteners position the Nozzles by rotating them on the Mount Plate;
using a leveler to achieve the angles shown below. The center Nozzles are to be positioned
to point straight down.
Clockwise Counter-Clockwise
Motor/Impeller & Motor/Impeller &
Housing Housing

Counter-Clockwise
Clockwise Motor/Impeller &
Motor/Impeller & 68 68 Housing
Housing

0

91-1/4”
62 Approximately 62

Step 2:
Position both center Nozzles to point
straight down and adjust the others to the
specified angles. Secure the Nozzle
Housings to the Motor /Impeller Assemblies.

Entrance View
