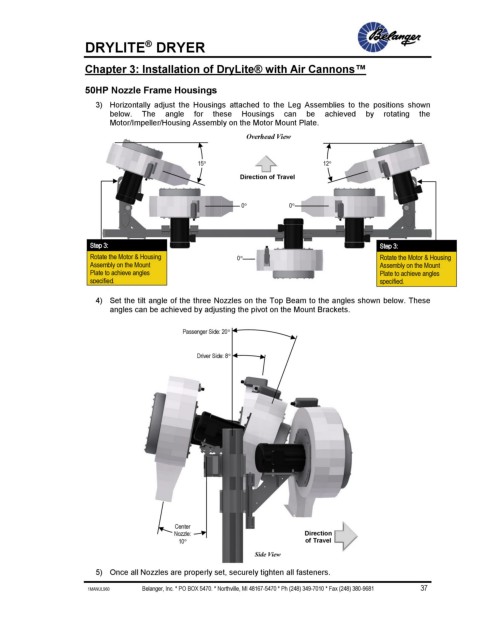

DRYLITE DRYER

Chapter 3: Installation of DryLite® with Air Cannons™

50HP Nozzle Frame Housings
3) Horizontally adjust the Housings attached to the Leg Assemblies to the positions shown
below. The angle for these Housings can be achieved by rotating the
Motor/Impeller/Housing Assembly on the Motor Mount Plate.

Overhead View

15 12

Direction of Travel

0 0

Step 3: Step 3:
Rotate the Motor & Housing 0 Rotate the Motor & Housing
Assembly on the Mount Assembly on the Mount
Plate to achieve angles Plate to achieve angles
specified. specified.

4) Set the tilt angle of the three Nozzles on the Top Beam to the angles shown below. These
angles can be achieved by adjusting the pivot on the Mount Brackets.

Passenger Side: 20

Driver Side: 8

Center
Nozzle: Direction
10 of Travel

Side View

5) Once all Nozzles are properly set, securely tighten all fasteners.
