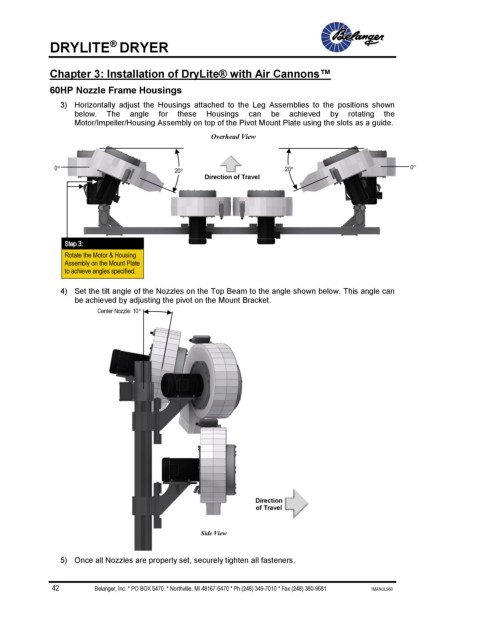

DRYLITE DRYER
Chapter 3: Installation of DryLite® with Air Cannons™
60HP Nozzle Frame Housings
3) Horizontally adjust the Housings attached to the Leg Assemblies to the positions shown
below. The angle for these Housings can be achieved by rotating the
Motor/Impeller/Housing Assembly on top of the Pivot Mount Plate using the slots as a guide.
Overhead View
0 20 20 0
Direction of Travel
Step 3:
Rotate the Motor & Housing
Assembly on the Mount Plate
to achieve angles specified.
4) Set the tilt angle of the Nozzles on the Top Beam to the angle shown below. This angle can
be achieved by adjusting the pivot on the Mount Bracket.
Center Nozzle: 10
Direction
of Travel
Side View
5) Once all Nozzles are properly set, securely tighten all fasteners.
