DRYLITE DRYER

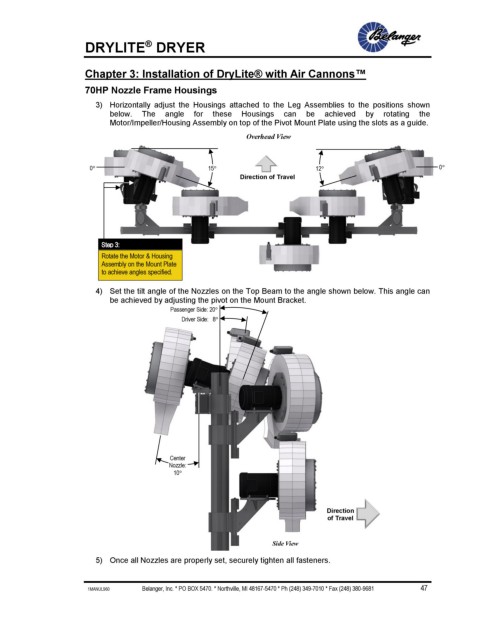

Chapter 3: Installation of DryLite® with Air Cannons™

70HP Nozzle Frame Housings
3) Horizontally adjust the Housings attached to the Leg Assemblies to the positions shown
below. The angle for these Housings can be achieved by rotating the
Motor/Impeller/Housing Assembly on top of the Pivot Mount Plate using the slots as a guide.

Overhead View

0 15 12 0
Direction of Travel

Step 3:
Rotate the Motor & Housing
Assembly on the Mount Plate
to achieve angles specified.

4) Set the tilt angle of the Nozzles on the Top Beam to the angle shown below. This angle can
be achieved by adjusting the pivot on the Mount Bracket.
Passenger Side: 20
Driver Side: 8

Center
Nozzle:
10

Direction
of Travel

Side View

5) Once all Nozzles are properly set, securely tighten all fasteners.
