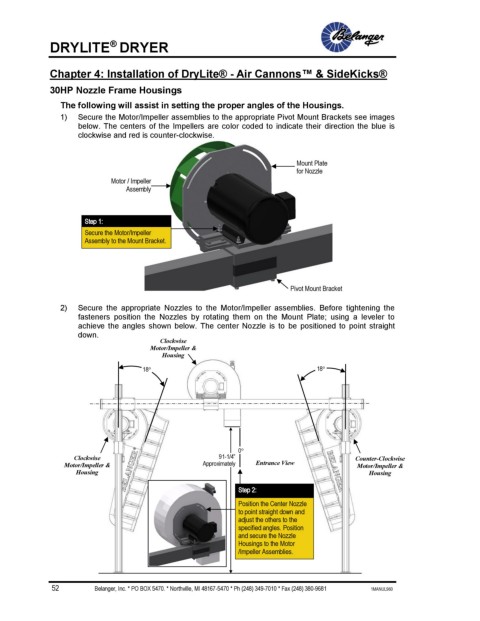

DRYLITE DRYER

Chapter 4: Installation of DryLite® - Air Cannons™ & SideKicks®

30HP Nozzle Frame Housings
The following will assist in setting the proper angles of the Housings.
1) Secure the Motor/Impeller assemblies to the appropriate Pivot Mount Brackets see images
below. The centers of the Impellers are color coded to indicate their direction the blue is
clockwise and red is counter-clockwise.

Mount Plate
for Nozzle
Motor / Impeller
Assembly

Step 1:
Secure the Motor/Impeller
Assembly to the Mount Bracket.

Pivot Mount Bracket
mar

2) Secure the appropriate Nozzles to the Motor/Impeller assemblies. Before tightening the
fasteners position the Nozzles by rotating them on the Mount Plate; using a leveler to
achieve the angles shown below. The center Nozzle is to be positioned to point straight
down.
Clockwise
Motor/Impeller &
Housing
18 18

0
Clockwise 91-1/4” Counter-Clockwise
Motor/Impeller & Approximately Entrance View Motor/Impeller &
Housing Housing

Step 2:
Position the Center Nozzle
to point straight down and
adjust the others to the
specified angles. Position
and secure the Nozzle
Housings to the Motor
/Impeller Assemblies.
