DRYLITE DRYER

Chapter 4: Installation of DryLite® - Air Cannons™ & Side Kicks®

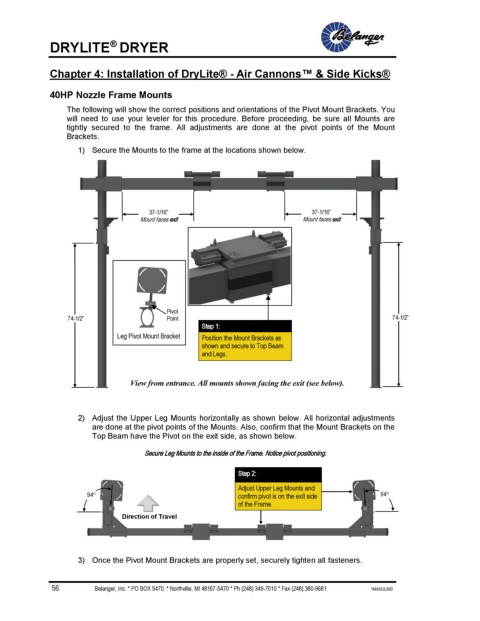

40HP Nozzle Frame Mounts

The following will show the correct positions and orientations of the Pivot Mount Brackets. You
will need to use your leveler for this procedure. Before proceeding, be sure all Mounts are
tightly secured to the frame. All adjustments are done at the pivot points of the Mount
Brackets.
1) Secure the Mounts to the frame at the locations shown below.

37-1/16” 37-1/16”
Mount faces exit Mount faces exit

Pivot
74-1/2” Point 74-1/2”
Step 1:
Leg Pivot Mount Bracket Position the Mount Brackets as
shown and secure to Top Beam
and Legs.

View from entrance. All mounts shown facing the exit (see below).

2) Adjust the Upper Leg Mounts horizontally as shown below. All horizontal adjustments
are done at the pivot points of the Mounts. Also, confirm that the Mount Brackets on the
Top Beam have the Pivot on the exit side, as shown below.

Secure Leg Mounts to the inside of the Frame. Notice pivot positioning.

Step 2:

Adjust Upper Leg Mounts and
94 confirm pivot is on the exit side 94
of the Frame.

Direction of Travel

3) Once the Pivot Mount Brackets are properly set, securely tighten all fasteners.
