Page 63 - DryLite® Dryers
P. 63
®
DRYLITE DRYER
Chapter 4: Installation of DryLite® - Air Cannons™ & Side Kicks®

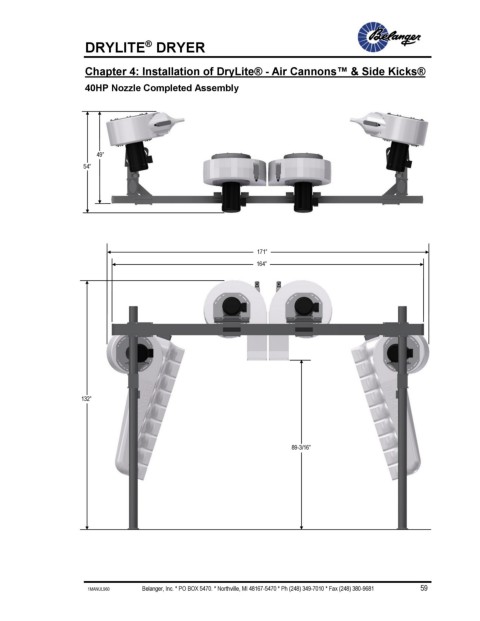

40HP Nozzle Completed Assembly
49”
54”
171”
164”
132”
89-3/16”
1MANUL960 Belanger, Inc. * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 59
