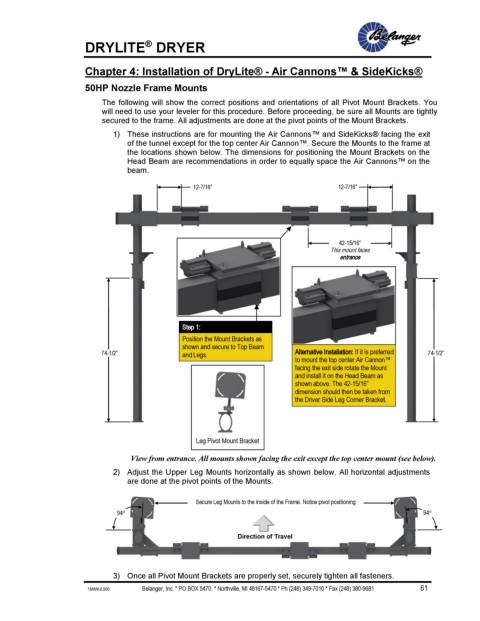

                       DRYLITE  DRYER

                       Chapter 4: Installation of DryLite® - Air Cannons™ & SideKicks®

                       50HP Nozzle Frame Mounts

                           The following will show the correct positions and orientations of all  Pivot Mount Brackets. You
                           will need to use your leveler for this procedure. Before proceeding, be sure all Mounts are tightly
                           secured to the frame. All adjustments are done at the pivot points of the Mount Brackets.

                              1)  These instructions are for mounting the Air Cannons™ and SideKicks® facing the exit
                                 of the tunnel except for the top center Air Cannon™. Secure the Mounts to the frame at
                                 the locations shown below. The dimensions for positioning the Mount Brackets on the
                                 Head Beam are recommendations in order to equally space the Air Cannons™ on the
                                 beam.

                                                  12-7/16”                             12-7/16”







                                                                                       42-15/16”
                                                                                     This mount faces
                                                                                        entrance









                                               Step 1:
                                               Position the Mount Brackets as
                                               shown and secure to Top Beam
                           74-1/2”             and Legs.                    Alternative Installation: If it is preferred   74-1/2”
                                                                            to mount the top center Air Cannon™
                                                                            facing the exit side rotate the Mount
                                                                            and install it on the Head Beam as
                                                                            shown above. The 42-15/16”
                                                                            dimension should then be taken from
                                                                            the Driver Side Leg Corner Bracket.

                                                                Pivot
                                                                Point

                                                   Leg Pivot Mount Bracket

                                  View from entrance. All mounts shown facing the exit except the top center mount (see below).

                              2)  Adjust the Upper Leg Mounts horizontally as shown below. All horizontal adjustments
                                 are done at the pivot points of the Mounts.


                                                   Secure Leg Mounts to the inside of the Frame. Notice pivot positioning
                               94                                                                           94


                                                              Direction of Travel




                              3)  Once all Pivot Mount Brackets are properly set, securely tighten all fasteners.
