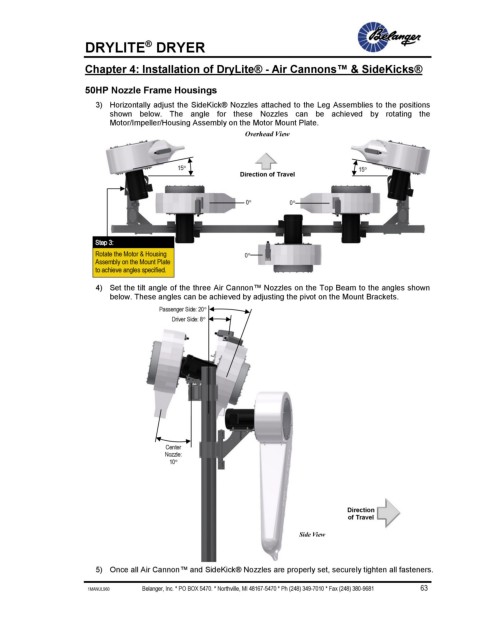

DRYLITE DRYER

Chapter 4: Installation of DryLite® - Air Cannons™ & SideKicks®

50HP Nozzle Frame Housings
3) Horizontally adjust the SideKick® Nozzles attached to the Leg Assemblies to the positions
shown below. The angle for these Nozzles can be achieved by rotating the
Motor/Impeller/Housing Assembly on the Motor Mount Plate.
Overhead View

15 15
Direction of Travel

0 0

Step 3:
Rotate the Motor & Housing 0
Assembly on the Mount Plate
to achieve angles specified.

4) Set the tilt angle of the three Air Cannon™ Nozzles on the Top Beam to the angles shown
below. These angles can be achieved by adjusting the pivot on the Mount Brackets.
Passenger Side: 20
Driver Side: 8

Center
Nozzle:
10

Direction
of Travel

Side View

5) Once all Air Cannon™ and SideKick® Nozzles are properly set, securely tighten all fasteners.
