DRYLITE DRYER

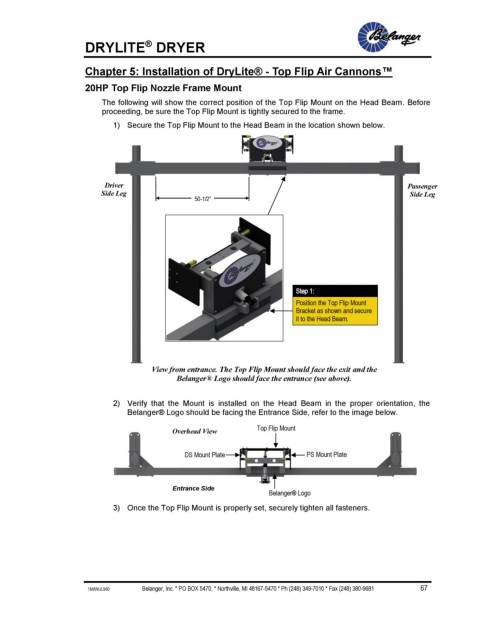

Chapter 5: Installation of DryLite® - Top Flip Air Cannons™

20HP Top Flip Nozzle Frame Mount

The following will show the correct position of the Top Flip Mount on the Head Beam. Before
proceeding, be sure the Top Flip Mount is tightly secured to the frame.
1) Secure the Top Flip Mount to the Head Beam in the location shown below.

Driver Passenger
Side Leg Side Leg
50-1/2”

Step 1:
Position the Top Flip Mount
Bracket as shown and secure
it to the Head Beam.

View from entrance. The Top Flip Mount should face the exit and the
Belanger® Logo should face the entrance (see above).

2) Verify that the Mount is installed on the Head Beam in the proper orientation, the
Belanger® Logo should be facing the Entrance Side, refer to the image below.

Overhead View Top Flip Mount

DS Mount Plate PS Mount Plate

Entrance Side
Belanger® Logo
3) Once the Top Flip Mount is properly set, securely tighten all fasteners.
