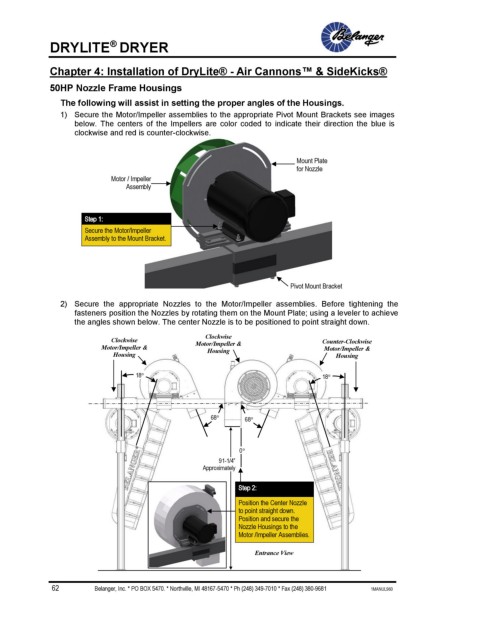

DRYLITE DRYER

Chapter 4: Installation of DryLite® - Air Cannons™ & SideKicks®

50HP Nozzle Frame Housings

The following will assist in setting the proper angles of the Housings.
1) Secure the Motor/Impeller assemblies to the appropriate Pivot Mount Brackets see images
below. The centers of the Impellers are color coded to indicate their direction the blue is
clockwise and red is counter-clockwise.

Mount Plate
for Nozzle
Motor / Impeller
Assembly

Step 1:
Secure the Motor/Impeller
Assembly to the Mount Bracket.

Pivot Mount Bracket

2) Secure the appropriate Nozzles to the Motor/Impeller assemblies. Before tightening the
fasteners position the Nozzles by rotating them on the Mount Plate; using a leveler to achieve
the angles shown below. The center Nozzle is to be positioned to point straight down.
Clockwise
Clockwise Counter-Clockwise
Motor/Impeller & Motor/Impeller & Motor/Impeller &
Housing Housing Housing

18 18

68 68

0
91-1/4”
Approximately

Step 2:

Position the Center Nozzle
to point straight down.
Position and secure the
Nozzle Housings to the
Motor /Impeller Assemblies.

Entrance View
