DRYLITE DRYER

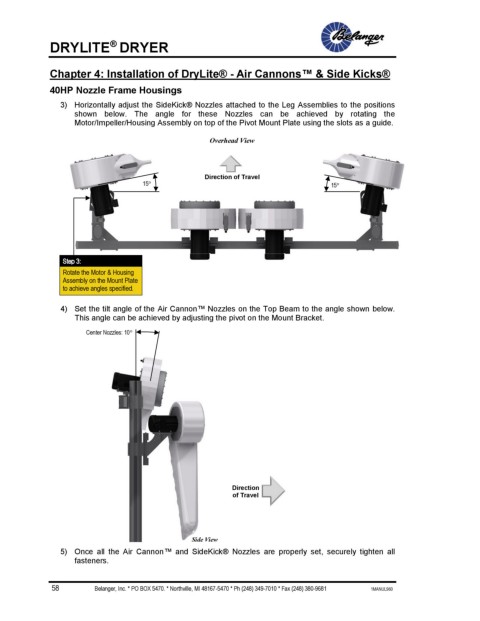

Chapter 4: Installation of DryLite® - Air Cannons™ & Side Kicks®

40HP Nozzle Frame Housings
3) Horizontally adjust the SideKick® Nozzles attached to the Leg Assemblies to the positions
shown below. The angle for these Nozzles can be achieved by rotating the
Motor/Impeller/Housing Assembly on top of the Pivot Mount Plate using the slots as a guide.

Overhead View

Direction of Travel
15 15

Step 3:
Rotate the Motor & Housing
Assembly on the Mount Plate
to achieve angles specified.

4) Set the tilt angle of the Air Cannon™ Nozzles on the Top Beam to the angle shown below.
This angle can be achieved by adjusting the pivot on the Mount Bracket.

Center Nozzles: 10

Direction
of Travel

Side View
5) Once all the Air Cannon™ and SideKick® Nozzles are properly set, securely tighten all
fasteners.
